FIRE SCULPTURE FEATURES
Brass Jet Pro Burner Series – Max Output
Dimension shown is overall diameter
18-36" diameter | 11" burner |110k NG|90k LP
36"-58" diameter | 21" burner | 175 NG | 175k LP
60"-70" diameter | 25" burner | 260k NG | 240k LP
72"-96"+ diameter | 32" burner | 426k NG | 402k LP
Burners and BTUs shown are for the standard sizes. These may change based on customizations and size alternations.
Standard Ignition Options
Push Button Spark Ignition (Included)
• Push button spark start, battery powered
• Manual key valve for flame adjustment
Push-Button Spark Ignition Kit Data Sheet Download
Electronic Switch Ignition (Flame-tec WeatherSmart™)
• Hardwired electronic ignition with automatic relight and flame sensing
• Includes 12V AC transformer for standard 110 or 120V connection
• Operates by wall switch or building control system
• Manual key valve for flame adjustment
• Must be installed at least 10 feet from any pool, spa, or body of water
Electronic Ignition Data Sheet Download
Optional Electronic Add Ons:
• Bluetooth or WiFi Module – allows remote On Off control through your phone
WeatherSmart Wifi Bluetooth Control Data Sheet Download
• WeatherSmart Power Supply – waterproof low voltage power unit for outdoor use
WeatherSmart Rechargeable Battery Link
ADDITIONAL IGNITIONS OPTIONS AVAILABLE. CONTACT US FOR DETAILS.
Powder Coating
Powder Coat Finish Types
We use premium Prismatic Powders finishes selected for durability, visual depth, and long term outdoor performance.
"Oil Rubbed Bronze" - Texture Finish - Fine Smooth Sand-like Finish
Texture
Matte finish with a lightly raised surface
Excellent at hiding fingerprints, wear, and minor surface imperfections
Reduces glare and adds visual depth in bright outdoor environments
Well suited for architectural and exterior applications
"Luxe Oil Rubbed Bronze" - Metallic Finish - Fine Metallic
Metallic
Smooth finish with fine metallic flake
Adds subtle sheen and dimensional depth without high gloss
Provides an elevated, refined look for residential and hospitality settings
Balances modern aesthetics with durability
Vein Texture
Textured two tone or marbled appearance
Creates bold contrast and organic visual movement
Naturally disguises dust, wear, and environmental exposure over time
Often used where character and variation are desired
Patina Finishes
A custom process combining a powder coated base with layered patina additive techniques
Each finish is applied artistically, resulting in natural variation and one of a kind character
Offers the highest level of depth, movement, and uniqueness among all finish options
No two patina finishes are ever exactly the same
Learn more at PrismaticPowders.com and their Knowledge Base Page.
You may purchase physical powder coat samples directly on our site for all standard colors. This allows you to review color and texture before finalizing your selection.
You may also explore the full color libraries from our preferred supplier:
Not all available colors are stocked as standard options. Contact us to confirm availability and suitability.
What’s Included
Each fire pit, fire table, sculpture, or fire feature includes all required operating components, excluding final gas and electrical connections.
-
Premium aluminum or metal vessel
-
High-efficiency burner with required components
-
Push-button ignition system (standard)
-
1/2"–3/4" key valve for fuel and flame control
-
Whistle-free flexible gas lines with fittings
-
Aluminum burner pan or plate, per design
-
Optional accessories, if selected, such as fire media, wind guards, covers, lids, lighting, or items listed on the order confirmation
The vessel ships fully assembled. Burner and electronic components ship uninstalled to prevent transit damage. All vessels are pre-fitted and pre-drilled, with burner assemblies pre-mounted when practical to simplify final installation.
Installation Notes
-
Final gas and electrical connections must be completed by a licensed professional.
-
Systems are designed for straightforward installation with minimal components.
-
Electronic ignition systems are recommended for fire features over 200,000 BTU.
- Rechargeable battery powered options available for Electronic ignition systems where 110/120ac or 24v not available within
Shipping & Lead Time
Products ship from our facilities or domestic fabrication partners. Shipping method and cost are based on product size, weight, destination, and delivery requirements.
Smaller items ship via standard ground carriers. Larger fire pits, fire tables, fire and water features, and custom fabrications ship crated by freight. Freight deliveries are curbside with liftgate service and require a scheduled delivery appointment. Placement, uncrating, and installation are not included.
Shipping charges are calculated at checkout or quoted separately for larger or custom orders. Customers are responsible for ensuring adequate site access and must inspect all shipments upon delivery. Any visible damage must be noted on the carrier paperwork before signing.
Most products are made to order. Lead times vary by product, finish, burner system, and production schedule and are provided as estimates only. Transit time begins once the order ships and is dependent on the carrier and destination. Modofire is not responsible for delays caused by carriers, weather, or site access issues.
We recommend scheduling installation only after shipment confirmation is received.
Warranty & Coverage
Warranty coverage is divided between the fire vessel or enclosure and the internal burner and control components.
Fire Vessel & Enclosure
5 year limited warranty covering structural defects in materials and workmanship under normal outdoor use and proper installation. Surface finishes, patina, and cosmetic changes are not structural warranties.
Burners & Components (Manufacturer Warranties)
-
Burners (stainless steel or brass): Lifetime
-
Electronics and gas valves: 3 years residential, 1 year commercial
-
Pilot assemblies: 2 years residential, 1 year commercial
-
Stainless steel burner pans or valve boxes: 5 years residential, 1 year commercial
Terms & Exclusions
Warranty begins at shipment. Coverage includes replacement parts and factory repair labor only. Installation, removal, freight, and on site labor are excluded. Normal wear, finish variation, heat discoloration, misuse, improper installation, unauthorized modifications, and indirect damages are not covered.

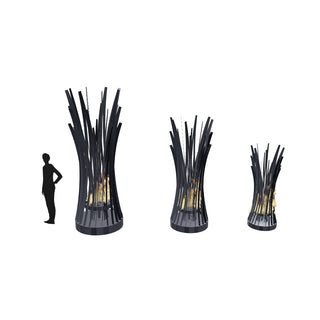

Sheaf Ember Fire Sculpture
- Unit price
- /per
A sculptural gathering of slender vertical elements that rise and open around a glowing core of fire. The form evokes natural bundling and radiant crowns, allowing light and flame to interact with structure in quiet balance. Designed as an architectural focal point, Sheaf Ember brings warmth and presence without excess.
Contact us for custom sizes and finishes.
Shipping Calculated at Checkout
Need help? Custom Sizes or Colors? Contact us
Adding product to your cart
