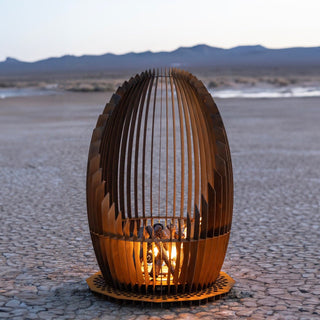

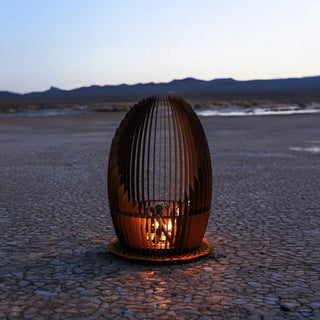

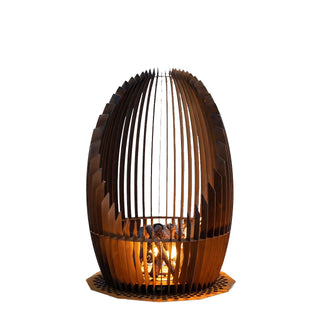

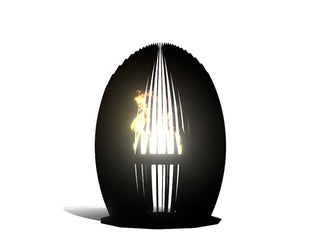

The Nebula Fire Pit Sculpture is defined by an open, forward facing flame and layered fins that arc behind it. The composition balances openness and structure, allowing firelight to move through geometry with glow and shadow. Nebula is designed as a sculptural focal point that presents fire as a composed, gallery like presence in outdoor spaces.
Nebula Fire Pit Sculpture

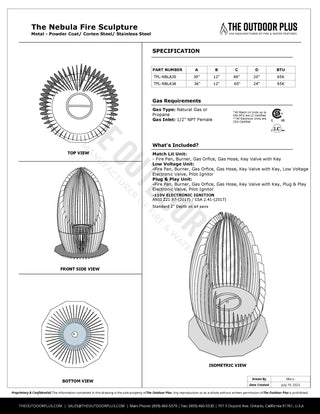

Available Sizes, Burner Area, and Output
• 30" D x 48" H • Burner area equivalent to 19" round • Up to 110,000 BTU • Premium Jet Burner
• 36" D x 60" H • Burner area equivalent to 25" round • Up to 296,000 BTU • Premium Jet Burner
• 48" D x 76" H • Burner area equivalent to 25" round • Up to296,000 BTU • Premium Jet Burner
• 54" D x 86" H • Burner area equivalent to 31" round • Up to 435,000 BTU • Premium Jet Burner
• 60" diameter x 96" height • Burner area equivalent to 37" round • Up to 443,000 BTU • Premium Jet Burner
Standard configuration includes the highest-output burner available for each size. Output is finalized per order based on gas supply. All burners are propane compatible at the highest BTUs shown.
Key Features
• Celestial inspired sculptural fire feature with dynamic layered geometry
• Powder coated metal construction using aluminum or steel as required by scale and environment
• High quality burner systems with precision jet technology
• Burner options available in stainless steel or solid brass
• Natural gas or propane compatibility
• CSA certified burner systems
• UL compliant ignition options including switch, Bluetooth, or WiFi
• Concealed internal components for a clean, composed exterior
• Custom sizes, finishes, materials, and configurations available
What’s Included
Each fire insert includes all core operating components required for proper burner performance. Final gas and electrical connections are not included.
• Commercial grade stainless steel or brass burner matched to round, square, or linear configuration
• Aluminum or stainless steel burner pan or plate as required by design
• Push button ignition system or electronic ignition if selected
• Key valve for fuel and flame control
• Whistle free flexible gas lines with required fittings
• Mounting brackets and internal support components
Inserts ship fully assembled where possible. Electronic components ship uninstalled to prevent transit damage. All systems are pre fitted and pre drilled to simplify installation.
Installation Notes
Final gas and electrical connections must be completed by a licensed professional. Electronic ignition systems are recommended for larger BTU applications. Battery powered ignition options are available where line voltage is not accessible.
Because each insert is custom configured, burner type, ignition system, and internal components may vary based on size, shape, and fuel selection.
Burners
Sizes, Openings, Output
Round
• 36" table • 19" opening • Up to 110,000 BTU • Premium Jet
• 48" table • 25" opening • Up to 296,000 BTU • Premium Jet
• 54" table • 31" opening • Up to 435,000 BTU • Premium Jet
• 60" table • 37" opening • Up to 443,000 BTU • Premium Jet
Square
• 36" table • 18" opening • Up to 110,000 BTU • Premium Jet
• 48" table • 24" opening • Up to 296,000 BTU • Premium Jet
• 54" table • 30" opening • Up to 435,000 BTU • Premium Jet
• 60" table • 36" opening • Up to 443,000 BTU • Premium Jet
Rectangle
• 48" table • 30" x 8.5" pan • 6" opening • Up to 110,000 BTU • Premium Jet
• 54" table • 36" x 8.5" pan • 6" opening • Up to 150,000 BTU • Premium Jet
• 60" table • 42" x 8.5" pan • 6" opening • Up to 190,000 BTU • Premium Jet
• 72" table • 54" x 8.5" pan • 6" opening • Up to 210,000 BTU • Premium Jet
• 84" table • 66" x 8.5" pan • 6" opening • Up to 250,000 BTU • Premium Jet
• 94" table • 72" x 8.5" pan • 6" opening • Up to 270,000 BTU • Premium Jet
Standard configuration includes the highest output burner available per size. Final BTU output is confirmed based on gas supply. All burners are propane compatible at listed maximum outputs.
Features
• Premium jet burner systems
• Brass or stainless steel options
• Natural gas or propane compatible
• CSA certified
• UL compliant ignition options including switch, Bluetooth, or WiFi
• Residential and commercial ready
• Custom sizes and outputs available
Push Button Spark Ignition
Standard on all Modofire fire tables, pits, and sculptures. This manual system uses a push button spark or match to ignite the burner. Flame height is controlled by the key valve.
Low Voltage Electric Ignition with Safety Shutoff
An optional fully automatic ignition system designed for reliable operation in outdoor environments, including near pools or water features. The system relights automatically and shuts off gas if the flame is lost. Ignition can be controlled by a wall switch, remote, Bluetooth, or WiFi, depending on configuration.
Pumps
Magnetic Drive Pump
Standard for most fountain and spillway inserts. These energy efficient pumps are ideal for clean water applications and moderate flow requirements. Available in multiple flow ranges, typically from 500 to 4200 gallons per hour depending on feature size and head height.
Clear Water High Output Pump
Used for larger architectural water features requiring higher flow rates or greater lift. Designed for continuous operation with reliable performance in formal spillways and taller vertical applications.
Solids Handling Pump
Specified when basin conditions or design intent require greater debris tolerance. Suitable for heavier duty installations and higher capacity recirculating systems.
All pumps are professional grade components selected based on basin volume, spillway width, jet configuration, and required gallons per hour. Pumps are installed within an integrated interior catch basin or designated reservoir chamber depending on system design.
Final electrical connections must be completed by a licensed professional. Pump sizing and placement vary by configuration and overall design intent.
Lighting
Optional integrated lighting systems are available for all fire, fountain, and spillway inserts. Modofire utilizes Blue Thumb IllumiGlow® and compatible low voltage lighting components to ensure full integration with basin, pump, and spillway systems.
Includes when selected:
• IllumiGlow® color changing LED pond and garden lights
• IllumiGlow® starter packs or single light kits depending on layout
• 12V outdoor rated transformers sized to the lighting load
• Raintight low voltage power supplies
• 2 pin splitters and connection hardware as required
• Optional replacement MR16 color changing bulbs
• Compatible basin lighting integration for Formal Falls® systems
Lighting applications vary by configuration:
Fire Inserts
Lighting is typically integrated through screened openings, perforations, interior pan sidewalls, or bottom illumination to create glow effects beneath or around the flame.
Fountain Inserts
Submersible or basin mounted IllumiGlow® fixtures are positioned within the interior catch basin or reservoir to illuminate moving water and vertical jets.
Spillway Systems
Directional pond and garden lights are positioned to wash the spillway face, basin, or falling sheet of water for full width illumination.
All lighting systems are low voltage and exterior rated for wet environments. Transformers and power supplies are sized per installation. Final electrical connections must be completed by a licensed professional.
Because every Modofire system is custom built, lighting placement, quantity, and transformer sizing vary based on scale, layout, and design intent.
Powder Coating
All Modofire finishes use premium exterior powder coating for long term durability and color stability.
Texture
Fine sand textured surface with low sheen. Reduces glare, hides fingerprints and wear, and adds subtle visual depth.
Metallic
Smooth finish with fine metallic flake. Adds gentle reflectivity and dimensional depth without high gloss.
Vein Texture
Layered two tone finish with natural veining. Creates movement and contrast while disguising dust and weathering.
Stone Texture
Mineral textured coating that replicates natural stone. Texture and sheen vary by color.
Artisan Patina
Hand finished layers applied over powder coat. Each piece is unique with natural variation. Sheen ranges from flat to satin.
Powder Coating Maintenance and Care
Powder coated finishes are designed for long term outdoor durability with minimal maintenance. Regular care helps preserve appearance and extend finish life, especially in exposed environments.
Routine Cleaning
Clean surfaces periodically using mild soap and clean water. A soft cloth or sponge is recommended. Rinse thoroughly to remove all soap residue and allow to air dry or wipe dry with a soft towel.
What to Avoid
Do not use abrasive pads, steel wool, scouring powders, or harsh chemicals. Avoid solvents, paint thinners, acetone, citrus cleaners, bleach, or acidic or alkaline cleaners, as these can dull or damage the coating. Pressure washers should not be used at close range.
Environmental Considerations
In coastal, desert, or high pollution environments, more frequent cleaning is recommended to remove salt, dust, or airborne contaminants that can accumulate on the surface over time.
Scratches and Wear
Minor surface marks are largely cosmetic and do not compromise corrosion protection. Textured and vein finishes naturally disguise wear and environmental buildup. If touch ups are needed, consult Modofire for compatible solutions.
Artisan Patina Care
Patina finishes are hand applied over powder coat and will vary naturally. Clean gently with soap and water only. Do not scrub aggressively or use chemicals, as this may alter the surface character.
With basic care, Modofire powder coated finishes will retain their color, texture, and protective qualities for many years in outdoor settings.
You may purchase physical powder coat samples directly on our site for all standard colors. This allows you to review color and texture before finalizing your selection.
You may also explore the full color libraries from our preferred supplier:
Not all available colors are stocked as standard options. Contact us to confirm availability and suitability.
Shipping and Lead Time
Shipping Method: Products ship from Modofire or domestic fabrication partners. Shipping method and cost are based on product size, weight, destination, and delivery requirements.
Delivery Type: Smaller items ship via standard ground carriers. Larger fire pits, fire tables, and custom fabrications ship crated by freight with curbside liftgate delivery and a scheduled appointment. Placement, uncrating, and installation are not included.
Shipping Charges and Inspection: Shipping charges are calculated at checkout or quoted separately for large or custom orders. Customers are responsible for ensuring site access and must inspect all deliveries upon arrival. Any visible damage must be noted on the carrier paperwork before signing.
Lead Time: Most products are made to order. Lead times vary by product, finish, and burner system and are provided as estimates only. Transit time begins once the order ships. Modofire is not responsible for delays caused by carriers, weather, or site access conditions.
Installation Timing: Installation should be scheduled only after shipment confirmation is received.
Warranty & Coverage
Warranty coverage is divided between the fire vessel and the burner and control components.
Fire Vessel and Enclosure
5 year limited warranty covering structural defects in materials and workmanship under normal outdoor use. Surface finishes, patina, and cosmetic changes are not considered structural and are excluded.
Burners and Components
Burners in stainless steel or brass carry a lifetime warranty. Electronics and gas valves are covered for 3 years residential and 1 year commercial. Pilot assemblies are covered for 2 years residential and 1 year commercial. Stainless steel burner pans and valve boxes are covered for 5 years residential and 1 year commercial.
Terms and Exclusions
Warranty begins at shipment and covers replacement parts and factory repair labor only. Installation, removal, freight, and on site labor are excluded. Normal wear, finish variation, heat discoloration, misuse, improper installation, unauthorized modifications, and indirect damages are not covered.
Contact us for Custom Sizes & Finishes, Higher BTUs, and Trade Programs.
