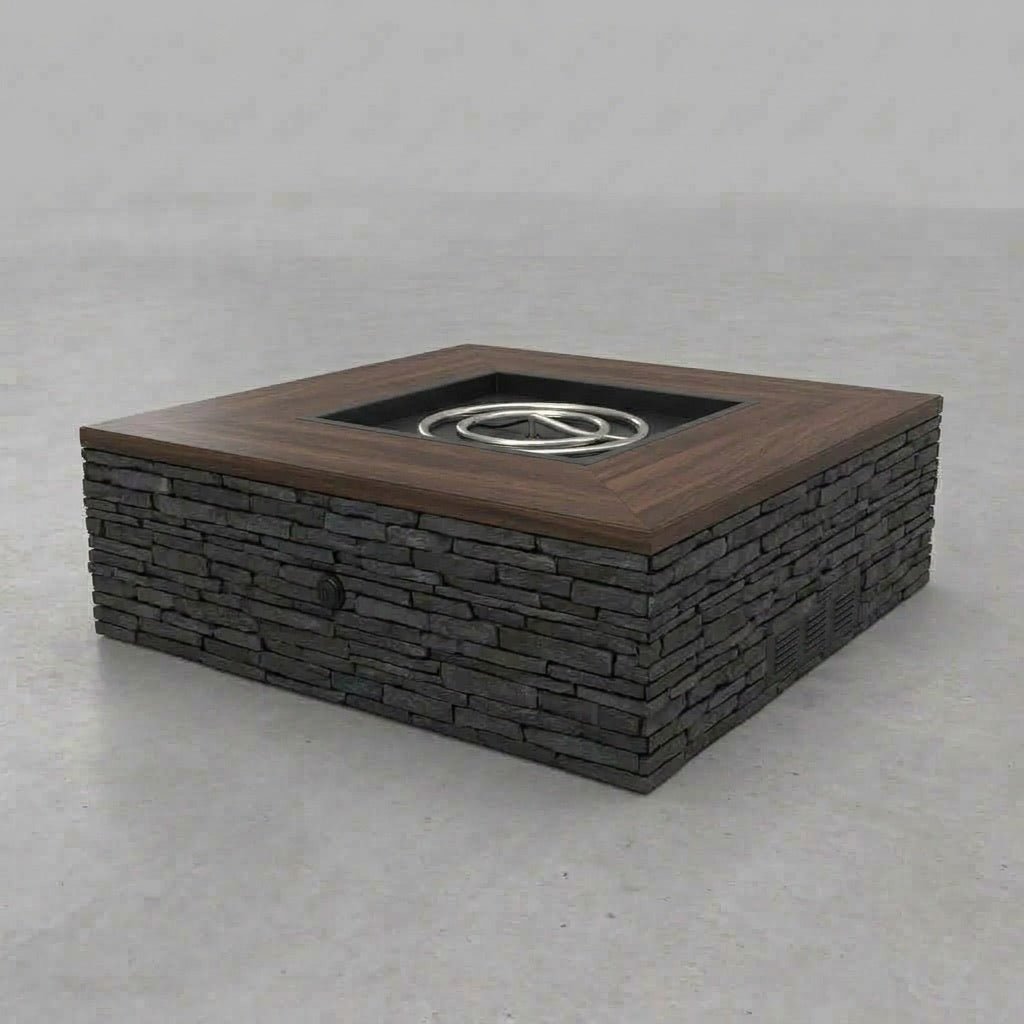

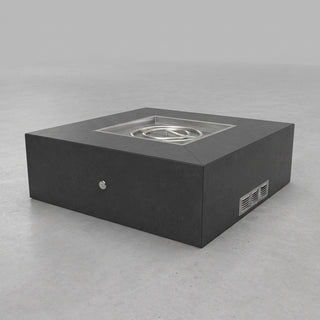

Square Fire Pit Form • Ready to Finish
Create a custom fire feature with balanced proportions and clean square geometry. The steel frame and cement board exterior provide a foundation for tile, stone, stucco, metal, Dekton, or similar materials suited to outdoor fire-feature applications.
Key Features
- Construction: Steel frame with cement board exterior
- Design: Square fire pit form ready for a custom finish
- Finish Options: Outdoor-rated, fire-safe tile, stone veneer, stucco, metal cladding, Dekton, and similar surfaces

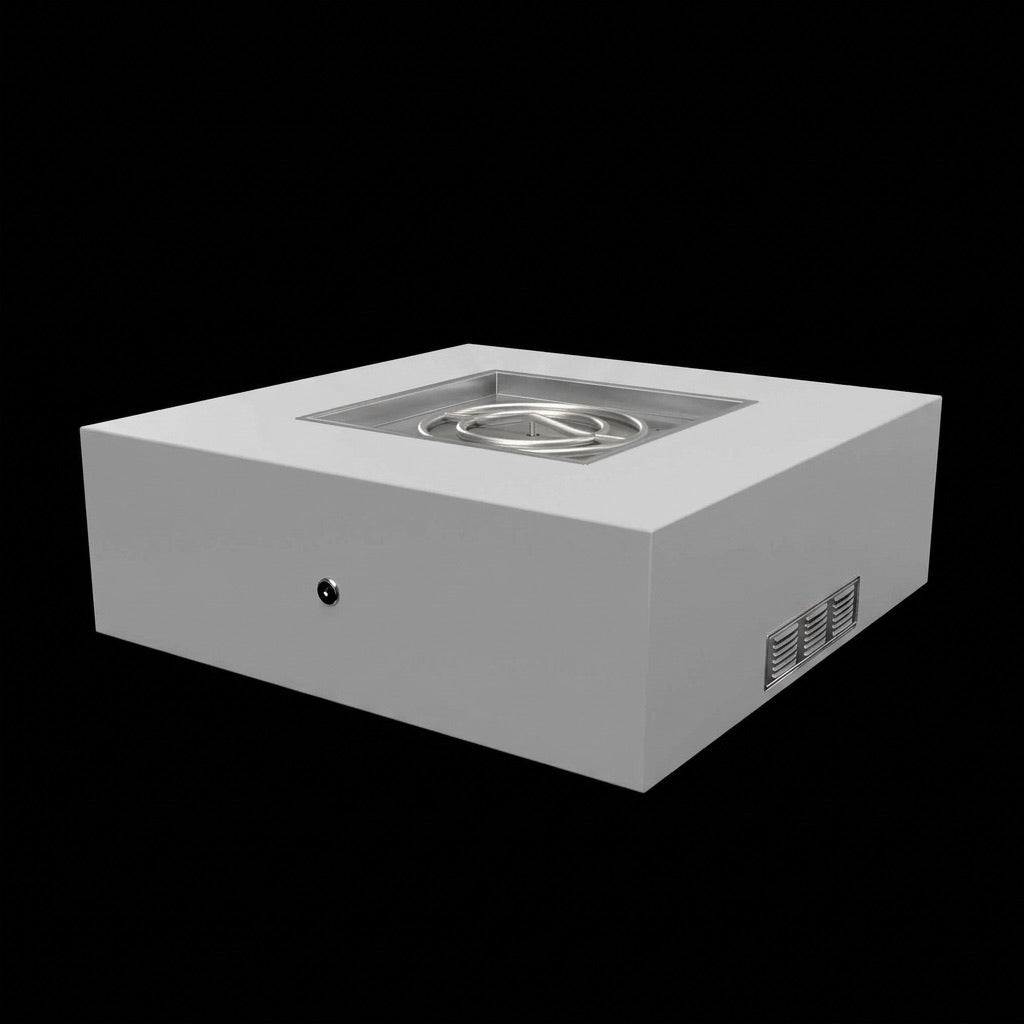

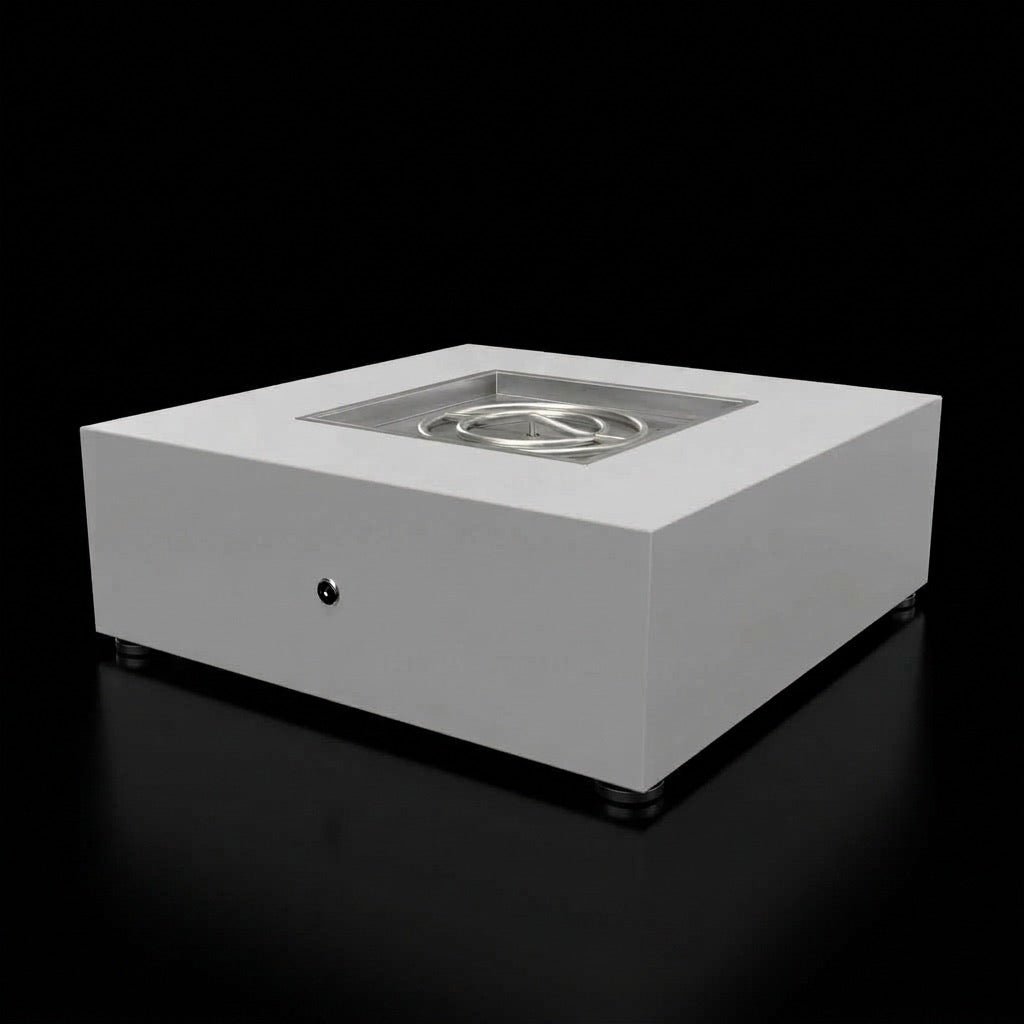

- Configurations: 16″ models without a door and 24″ models with an access door
- Fuel: Natural gas or liquid propane
- Ignition: Match Lit, Match Lit with Flame Sense, Flame Sense with Spark, Low Voltage Electronic, or Plug and Play
Available Sizes and Specifications
- 36″: 36″ × 36″ × 16″ or 24″ high
- 48″: 48″ × 48″ × 16″ or 24″ high
- 60″: 60″ × 60″ × 16″ or 24″ high
- 72″: 72″ × 72″ × 16″ or 24″ high
- 84″: 84″ × 84″ × 16″ or 24″ high
- 36″ Model: 18″ × 18″ pan | 12″ burner

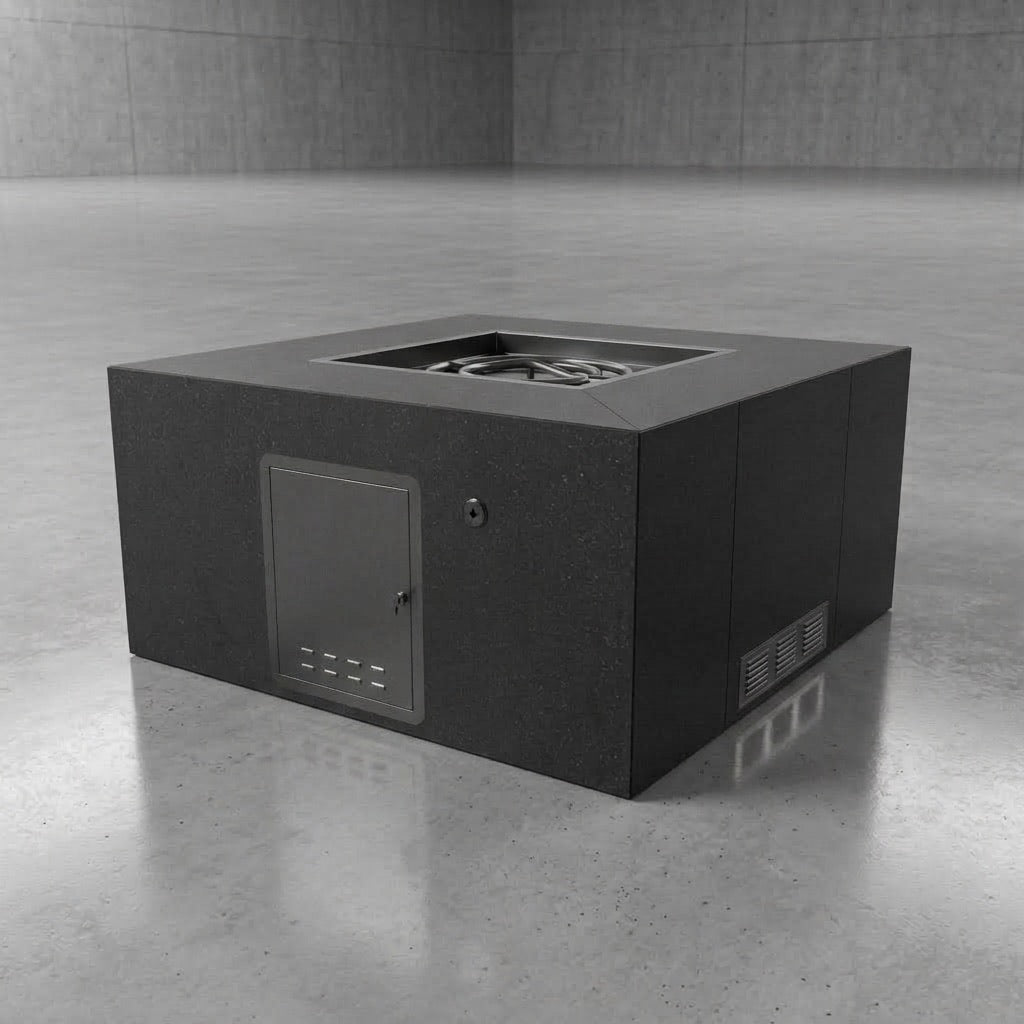

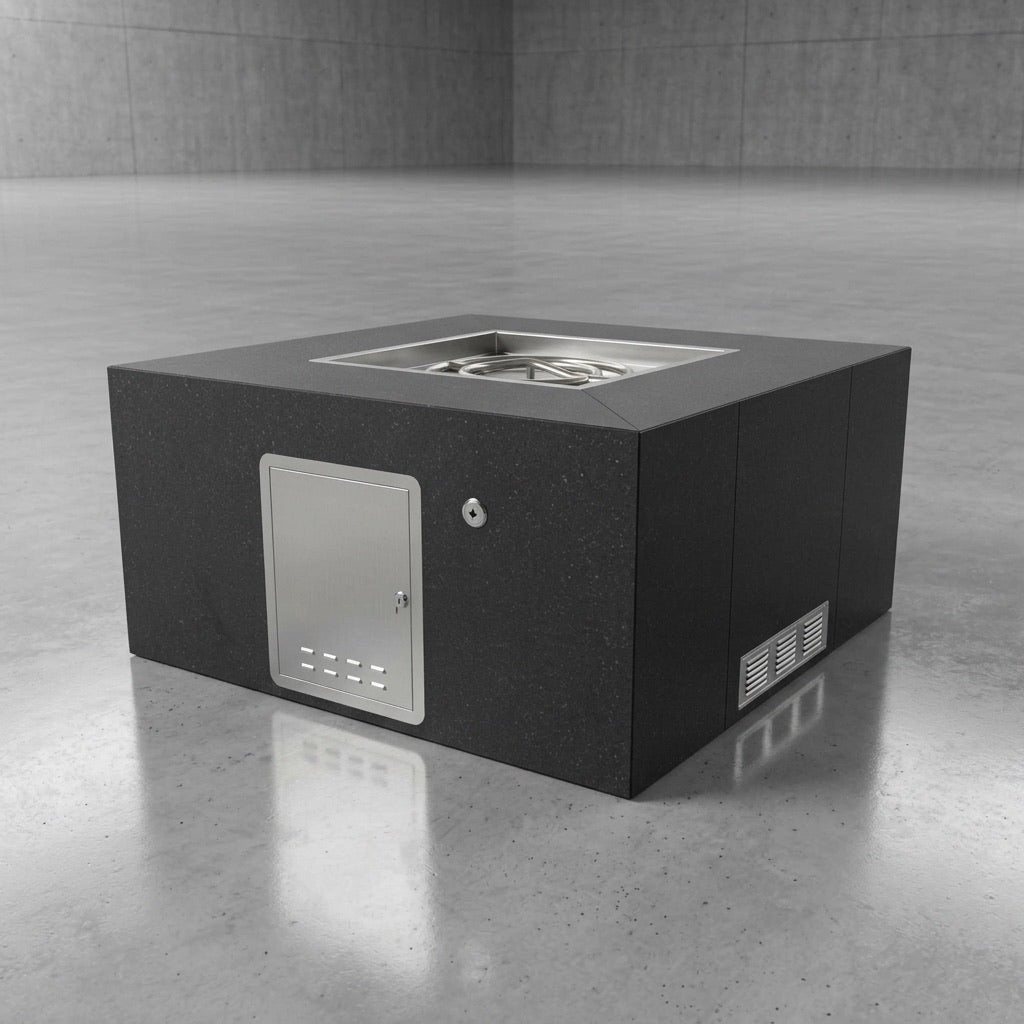

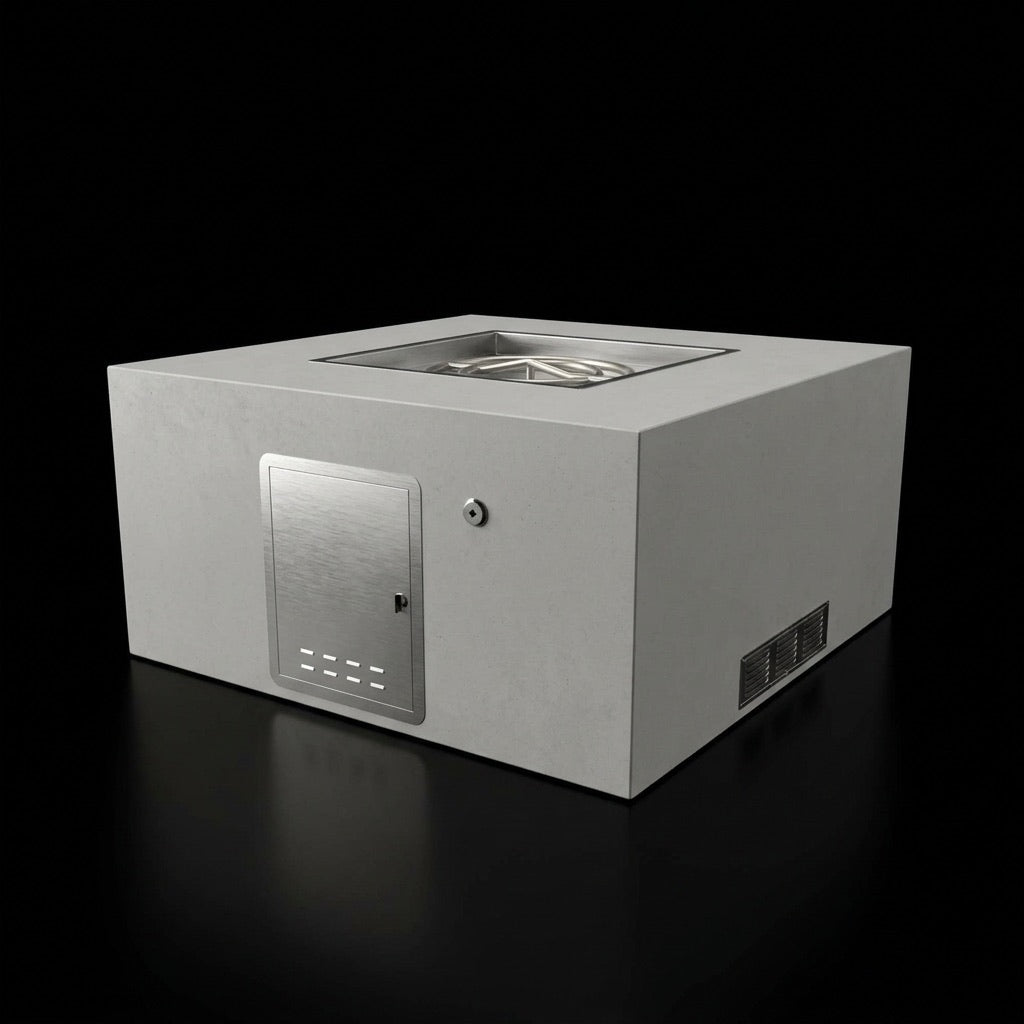

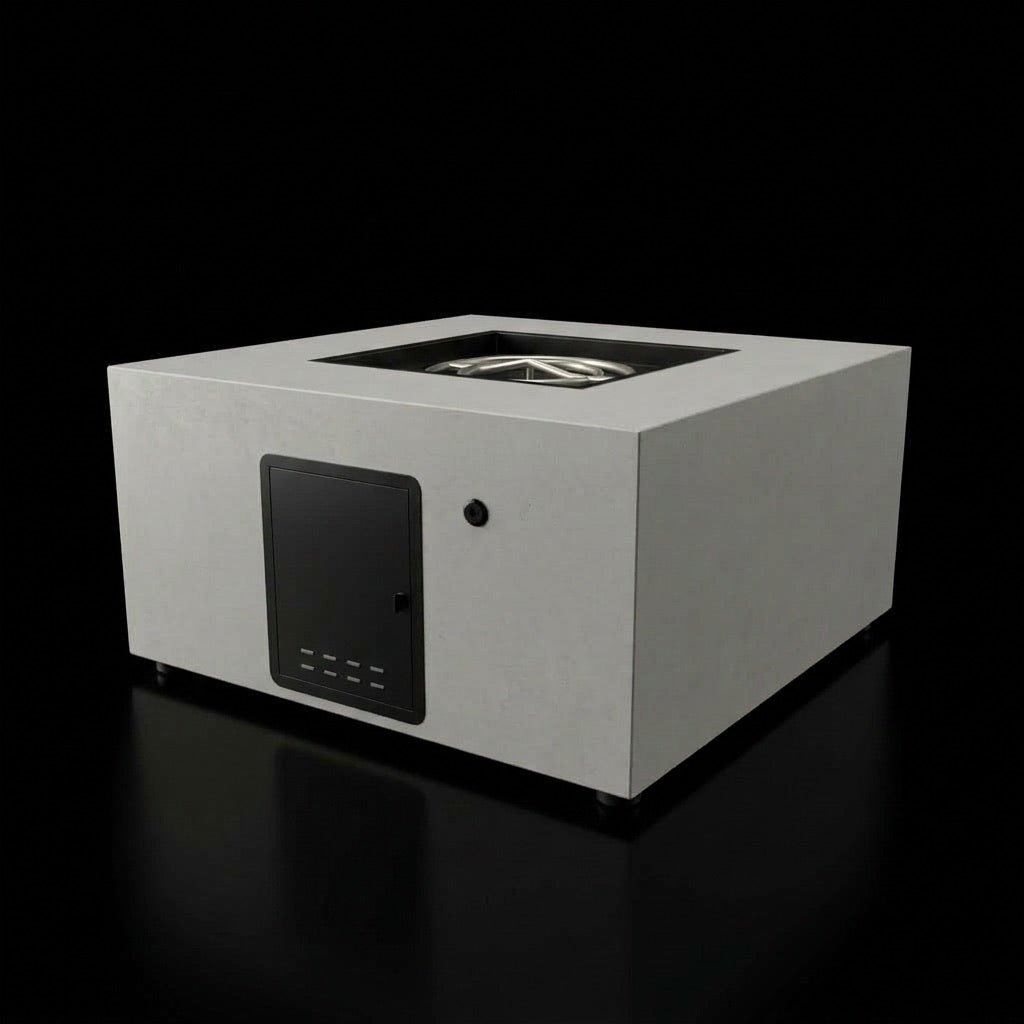

- 36″ Model with Door: 14″ × 17″ access door
Included
- Stainless steel drop-in pan
- Burner
- Key valve
- Whistle-free hoses
- Stainless steel air vent
Important Installation Note
Finish materials are supplied separately. Surfaces, adhesives, and installation materials must be suitable for outdoor use and the heat exposure at their installed location. Maintain required ventilation and burner clearances. Final gas and applicable electrical connections must be completed by qualified professionals.
Materials & Finishes
Aluminum
Lightweight, corrosion-resistant and highly formable, making it suitable for both simple and complex designs.
Steel
Strong, rigid and durable, with excellent heat tolerance and structural stability.
Stainless Steel
Strong, corrosion-resistant and exceptionally durable, with a clean, refined appearance.
Corten Steel
A durable weathering steel that develops a distinctive, protective rust-colored patina over time.
Copper & Hammered Copper
A naturally beautiful and durable material available in smooth or hand-hammered textures. Copper develops a rich, evolving patina with age and exposure.
Finishes
Powder-Coated Aluminum
Lightweight and corrosion-resistant with a durable exterior finish available in a broad range of colors, textures and effects.
Powder-Coated Steel
Strong and rigid with a durable exterior finish that provides color, texture and protection against corrosion.
Powder-Coated Stainless Steel
Combines the corrosion resistance of stainless steel with the color, texture and added protection of a durable exterior finish.
High-Heat Ceramic Coating
High-heat ceramic coating provides enhanced heat resistance and is available in a broad range of colors.
Custom Finishes
Natural and satin-finished stainless steel, specialty powder coats, metal patinas and other custom options are available upon request.
View and order finish samples
Explore powder-coat colors
Explore high-heat ceramic colors
Colors shown online are approximate. Contact us to confirm availability and suitability. For powder-coated products, choose “Other Powder Coat Color • Specify Below” to purchase now and confirm your color later, including after reviewing samples.
Care
Clean with mild soap, water and a soft cloth. Avoid abrasives, harsh chemicals and close-range pressure washing. Natural copper and Corten steel will develop a changing patina with age and exposure.
What's Included
Your fire feature includes the burner and ignition system shown in your selected configuration, along with the internal gas flex-line kit, required fittings and mounting hardware. Burner pans and support components are supplied as appropriate for the design.
Included fire media and quantities are identified in the product options. Accessories and ignition upgrades are included only when selected or expressly listed as included.
Components and media may be packaged or shipped separately. Final site connections, assembly and installation are not included and must be completed by qualified professionals.
See the product options for available burner sizes, configurations and BTU outputs
Features
• Premium jet burner systems
• Stainless steel and Brass options available
• Natural gas or propane compatible
• CSA certified
• Push-Button Spark Ignition, Push-Button Ignition with Flame Sensing, and Electronic Ignition with Flame Sensing are available as shown for the selected burner. Compatible remote or app controls are optional
• Residential and commercial ready
• Custom burner sizes, configurations and BTU outputs are available
Ignition Systems
Available ignition options depend on the selected burner and configuration.
Push-Button Spark Ignition
Battery-powered spark ignition with manual key-valve control. No site power is required. This system does not provide automatic flame monitoring or relighting.
Push-Button Ignition with Flame Sensing
Battery-powered ignition with flame monitoring and automatic gas shutoff if the flame is lost. Flame height is adjusted using a control dial. No site power or decorative key valve is required.
Electronic Ignition with Flame Sensing
Switch-operated ignition with flame monitoring and safety shutoff. Flame height is adjusted using a key valve. A compatible power supply is required; a rechargeable battery-powered option is available under electrical accessories where site power is unavailable.
Remote controls, app control, automatic relighting and automation compatibility depend on the selected system. WiFi may require an optional hub. See the product options for available configurations.
Fire Media
Included media and quantities are shown in the product options. Many Modofire configurations include lava rock; fire glass and other alternatives are available where offered. Additional media may be sold separately. Use only media approved for the selected burner and follow the manufacturer’s placement instructions.
Shipping & Lead Time
Lead times. Most Modofire products are made to order. Quoted production and shipping dates are estimates, not guaranteed delivery dates. Lead times vary with the design, finish, components, and fabrication schedule. We will communicate material changes to the expected shipping schedule. Transit time begins when the carrier receives the shipment.
Shipping and delivery. Products ship from Modofire or our domestic fabrication partners. Shipping method and cost depend on the size, weight, destination, and delivery requirements of the order. Smaller items generally ship by parcel carrier. Large or custom pieces generally ship crated by freight for curbside delivery, with a liftgate when included in the shipping arrangement. Delivery does not include placement, uncrating, assembly, gas or electrical connections, or installation.
Site readiness. The customer is responsible for providing an accurate delivery address, suitable carrier access, and people and equipment needed to receive and move the product from the delivery point. Storage, redelivery, or special-handling charges caused by unavailable access or a missed delivery appointment are the customer’s responsibility. Schedule installation only after shipment has been confirmed and the product has been received and inspected.
Delivery inspection. Inspect the crate and packaging before signing. Note any visible damage on the carrier’s delivery receipt, take photographs, and contact Modofire promptly. If damage is discovered after uncrating, retain the packaging and contact us with photographs as soon as possible, preferably within 48 hours. We will help review the issue and coordinate the appropriate freight claim or resolution.
Delays and related costs. Modofire is not responsible for carrier delays, weather, permitting, site conditions, or other circumstances outside its control. To the extent permitted by law, Modofire is not responsible for costs arising from a delayed delivery, including scheduled installers, equipment, travel, or lost use.
Warranty & Coverage
Each Modofire fire feature is made to order. We stand behind the quality of its materials, fabrication and finish.
Modofire covers the vessel, enclosure, fire table or sculpture against defects in materials and fabrication for five years from delivery. Powder-coated finishes are covered for five years from delivery against premature peeling or blistering caused by application or adhesion defects. This coverage applies to the original purchaser.
Burners carry a lifetime manufacturer’s warranty, subject to the manufacturer’s terms. Lifetime coverage applies only to the burner. Ignition systems, controls and other components carry separate manufacturer warranties. Modofire will help coordinate claims and connect you or your service professional with technical support.
Installation, gas and electrical connections, startup and service must be handled by qualified local professionals. Approved fire media must be installed before regular use according to the burner manufacturer’s instructions. Keep pilot openings, drainage and ventilation clear. Qualified installers may test the system without media when permitted by the manufacturer.
Modofire’s warranty does not cover:
- Normal wear or expected cosmetic changes such as patina, fading, heat discoloration or surface rust.
- Scratches or chips caused during handling or installation.
- Damage from improper installation, incorrect media placement or overheating.
- Damage from blocked ventilation or drainage, standing water, misuse, modification or inadequate maintenance.
Clean powder-coated surfaces with mild detergent and a soft cloth. Rinse thoroughly and remove salt or chemical buildup. Do not use abrasive cleaners or harsh solvents.
To make a claim, contact Modofire with proof of purchase, photographs and a description of the issue before returning any part. Modofire will repair or replace covered vessel or finish defects at its discretion. Removal, reinstallation, on-site labor, freight and related costs are not covered by Modofire’s warranty. Component claims follow the applicable manufacturer’s warranty terms and process.
Returns & Cancellations
Most Modofire products are made to order for a specific project. These terms reflect the work and materials committed to each order.
Cancellations. Orders may be cancelled for a full refund before project-specific design begins, materials are purchased or fabrication starts. After design work begins or materials are purchased, cancellation requires Modofire’s approval. Any refund will be reduced by costs already incurred. Once fabrication begins, made-to-order products cannot be cancelled except as required by law.
Made-to-order products. Custom-fabricated fire tables, fire features, vessels, planters and sculptures are not eligible for return after delivery.
Burners and technical components. Burners, ignition systems, controls and other project-specified components cannot be returned due to a change of mind. Installed components are not eligible for return. Defective components are handled under the applicable manufacturer’s warranty. Incorrect components are handled under the order terms.
Standard accessories. Eligible non-fabricated accessories may be returned within 30 days of delivery with prior authorization. Items must be unused and uninstalled in their original packaging. A 12% restocking fee and return shipping costs may apply. Refunds are issued after receipt and inspection.
Finish variations. Natural variations in color, texture and patina are characteristics of the materials and finishes. These variations alone are not defects.
Problems with an order. Contact Modofire before returning any damaged, incorrect or potentially defective item. We will review the issue under the applicable order terms or our Warranty & Coverage policy. If Modofire cannot fulfill an order, we will issue a full refund.
Maintenance & Care
Modofire powder coated aluminum fire tables are built for long-term outdoor use and require only routine maintenance.
Clean Surfaces
Wash with mild soap and water using a soft cloth. Avoid abrasive cleaners, solvents, bleach, and pressure washing. In coastal or poolside environments, clean more frequently to preserve the finish.
Burner Care
Keep burner ports free of leaves, insects, debris, and fire media dust. Clean gently with a soft brush or compressed air. Do not alter the delivered burner. Contact Modofire about custom burner sizes, configurations or BTU outputs. Install fire media loosely and evenly for proper flame performance.
Ignition Systems
Periodically inspect gas connections, wiring, controls, and ignition components. Keep electronic systems dry and allow them to dry completely if exposed to moisture. Test operation regularly and follow the ignition manufacturer's maintenance recommendations.
Covers & Lids
Always allow the fire table to cool before installing a lid or cover. Keeping the unit covered when not in use helps protect the finish and extends the life of the burner and ignition system.
Seasonal Inspection
Before each season and after extended storage, inspect the burner, gas connections, and ignition system. Replace worn components as needed and consult a qualified professional for service.
With routine cleaning and periodic inspections, your Modofire fire table will provide years of dependable performance and lasting beauty.
Gas & Electrical Requirements
To help ensure proper performance, your fire feature will require an adequate gas supply and, depending on the ignition option selected, may require electrical power.
Gas Supply Requirements
Available for Natural Gas (NG) or Liquid Propane (LP). Most installations connect to an existing gas line or an external propane tank.
Most residential fire features operate between 90k and 300k BTU. Larger fire tables and commercial installations may require 300k BTU to 600k+ BTU.
As burner size increases, larger gas lines and sufficient gas supply become increasingly important.
Reference Charts: Natural Gas Sizing Chart
Natural Gas Pipe Sizing Guide (Approximate Maximum BTU Capacity)
- 1/2" Pipe • 20 ft: 118k BTU • 50 ft: 72k BTU • 100 ft: 50k BTU
- 3/4" Pipe • 20 ft: 247k BTU • 50 ft: 151k BTU • 100 ft: 104k BTU
- 1" Pipe • 20 ft: 466k BTU • 50 ft: 284k BTU • 100 ft: 195k BTU
- 1¼" Pipe • 20 ft: 957k BTU • 50 ft: 583k BTU • 100 ft: 400k BTU
Liquid Propane Pipe Sizing Guide (Approximate Maximum BTU Capacity)
- 1/2" Pipe • 20 ft: 200k BTU • 50 ft: 122k BTU • 100 ft: 94k BTU
- 3/4" Pipe • 20 ft: 418k BTU • 50 ft: 255k BTU • 100 ft: 197k BTU
- 1" Pipe • 20 ft: 787k BTU • 50 ft: 480k BTU • 100 ft: 372k BTU
- 1¼" Pipe • 20 ft: 1,620k BTU • 50 ft: 985k BTU • 100 ft: 763k BTU
Typical Examples
- • 150k BTU fire feature: Often served by a 3/4" gas line
- • 300k BTU fire feature: Often served by a 1" gas line
- • 500k BTU fire feature: Often served by a 1¼" gas line
Actual requirements vary based on pipe length, fittings, regulators, gas meter capacity, elevation, and other connected appliances. Pipe length should also account for fittings, with the manufacturer reference chart noting approximately 5 ft of added length per fitting.
Ignition & Electrical Requirements
The following ignition and control options are available depending on your desired features and available power source.
Push-Button Spark Ignition: No electrical service required.
Push-Button Ignition with Flame Sensing: Battery operated, with flame-loss gas shutoff and no decorative key valve. No site electrical service is required.
Electronic Ignition with Flame Sensing: Requires a compatible power supply; electrical requirements depend on the selected system. A rechargeable battery-powered option is available where site power is unavailable.
Bluetooth & WiFi Control Module: Optional control for compatible electronic ignition systems. A compatible low-voltage power supply is required; WiFi may require an optional hub.
Rechargeable Battery Bluetooth & WiFi Module: Optional rechargeable power and app control for compatible electronic ignition where site power is unavailable or difficult to access.
Available Controls
Compatible options vary by system: Wall Switches • Timer Switches • Emergency Stops • Bluetooth • WiFi • Hi/Lo Flame Control • Smart Home Integration • Building Automation Systems
Professional Installation
Final gas and electrical connections must be completed by qualified licensed professionals in accordance with local codes and regulations.
Gas sizing charts and BTU references are provided as general guidelines only. Actual gas availability varies by installation. Always consult a licensed gas professional to verify gas capacity, pipe sizing, pressure, regulator sizing, meter capacity, and code compliance before installation.
