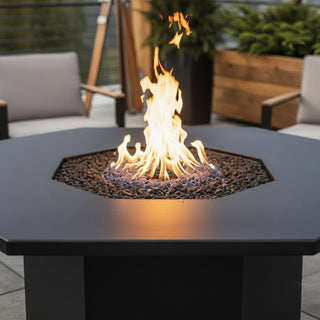

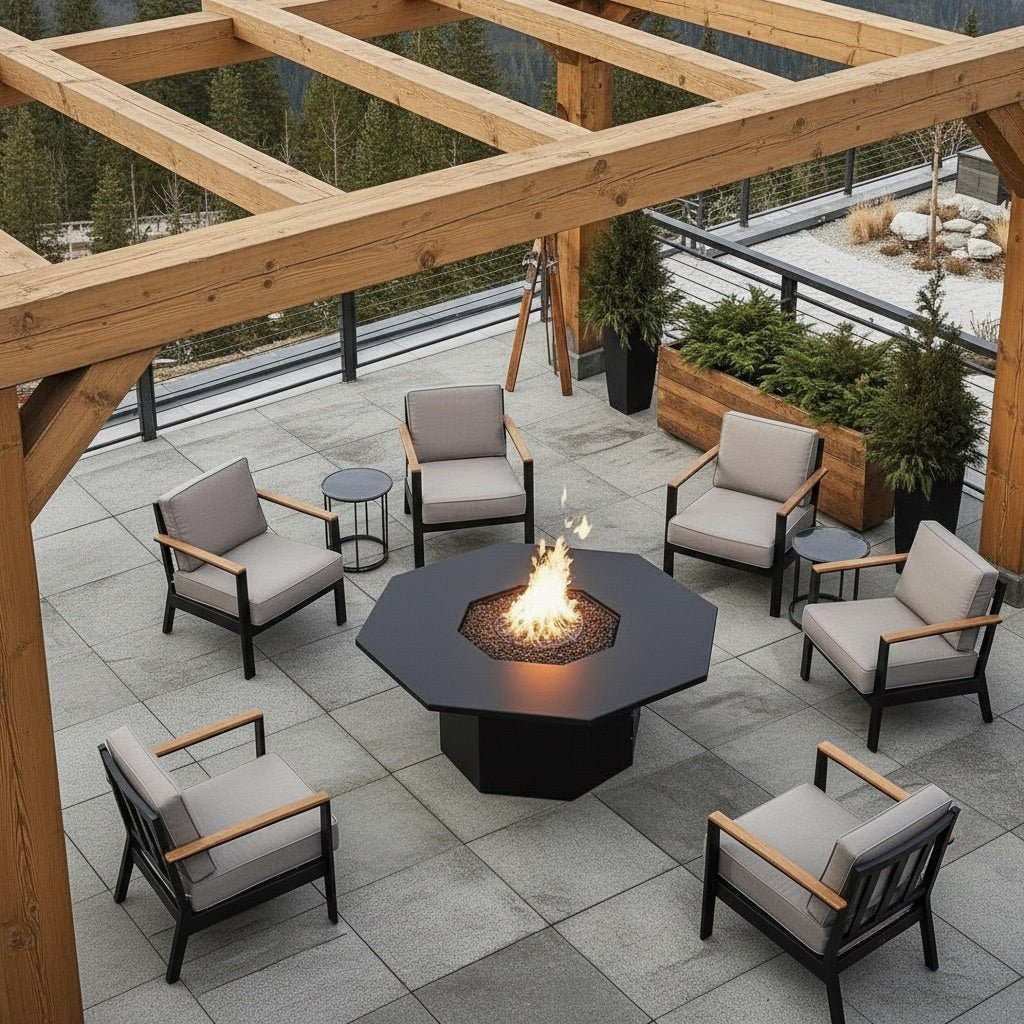

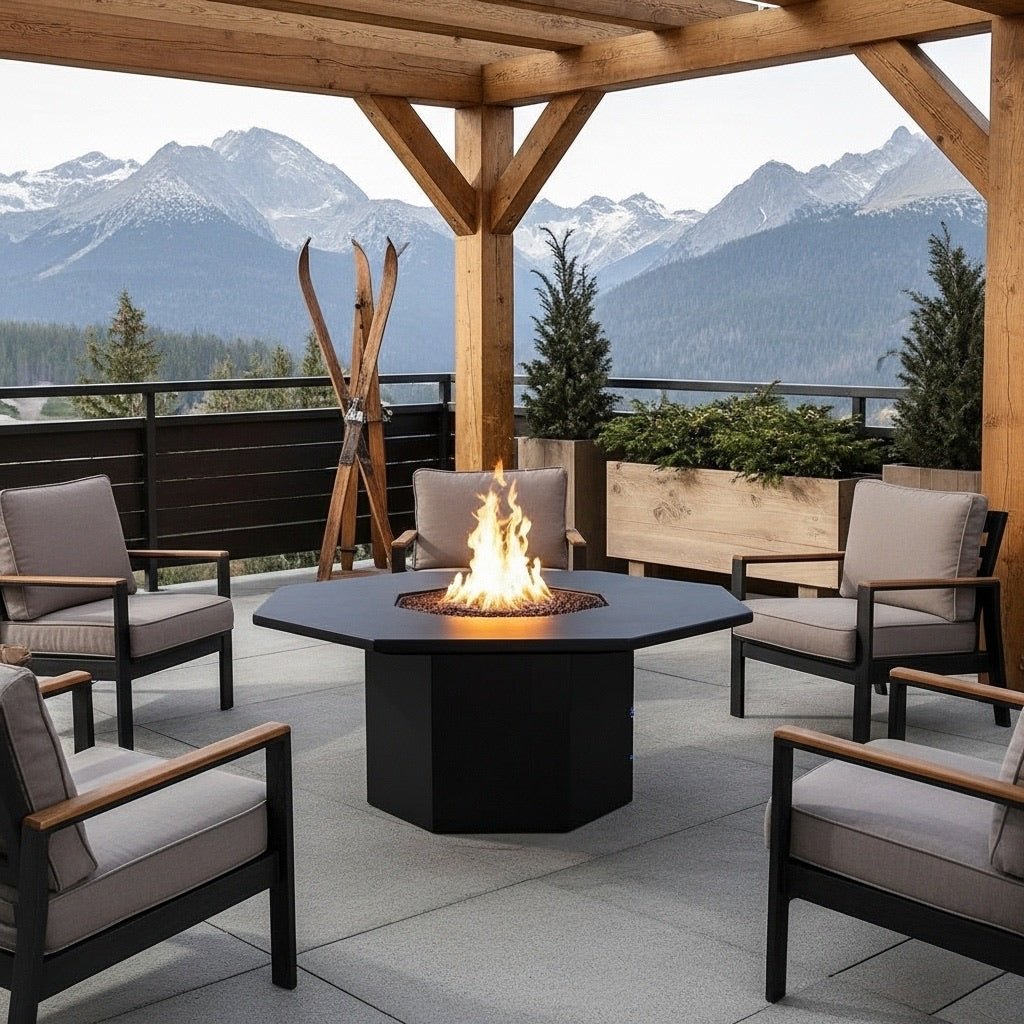

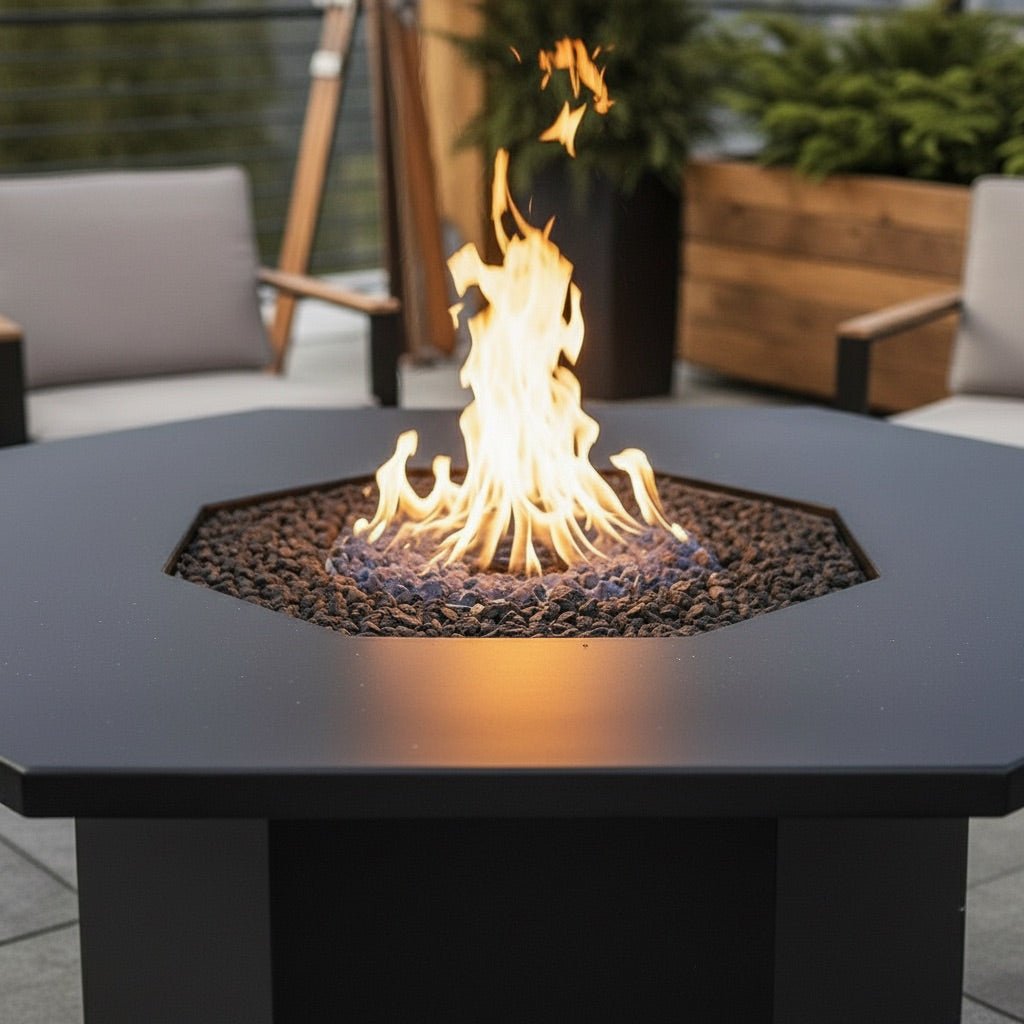

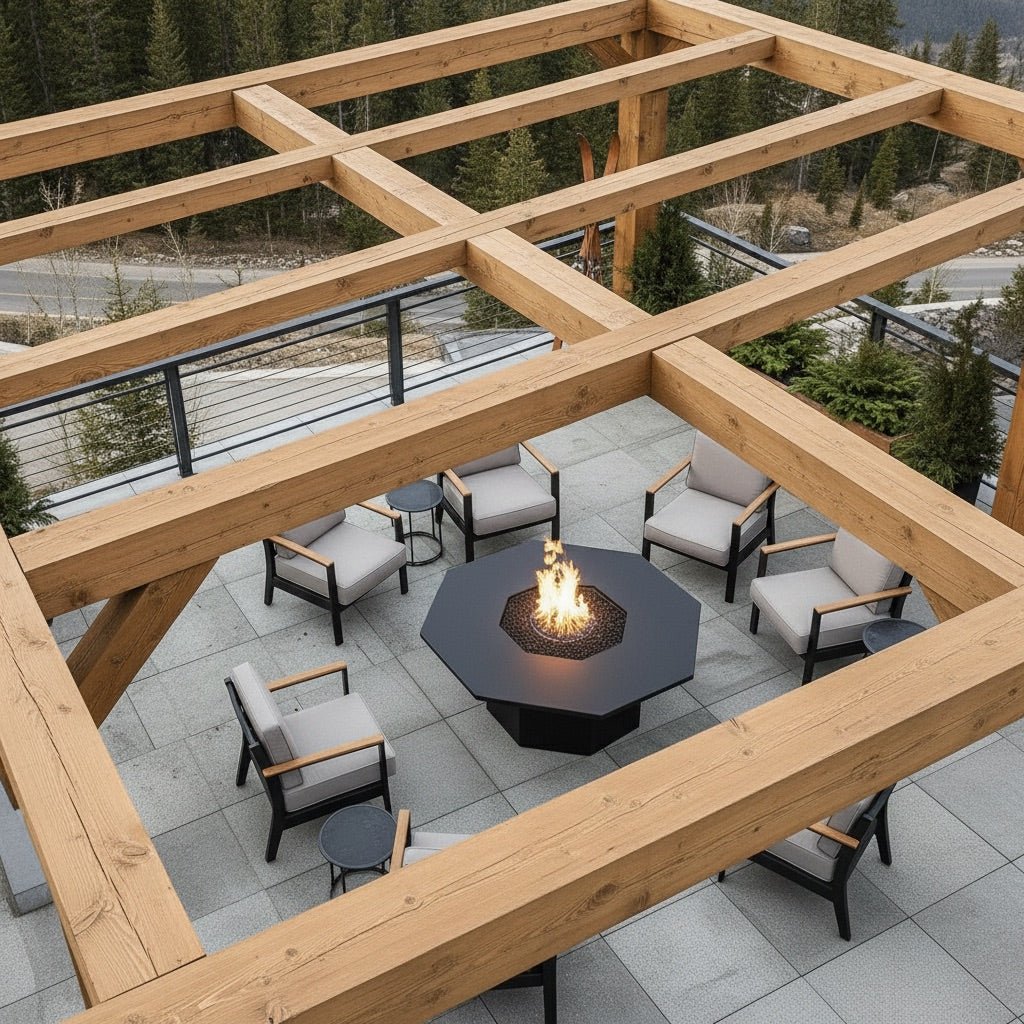

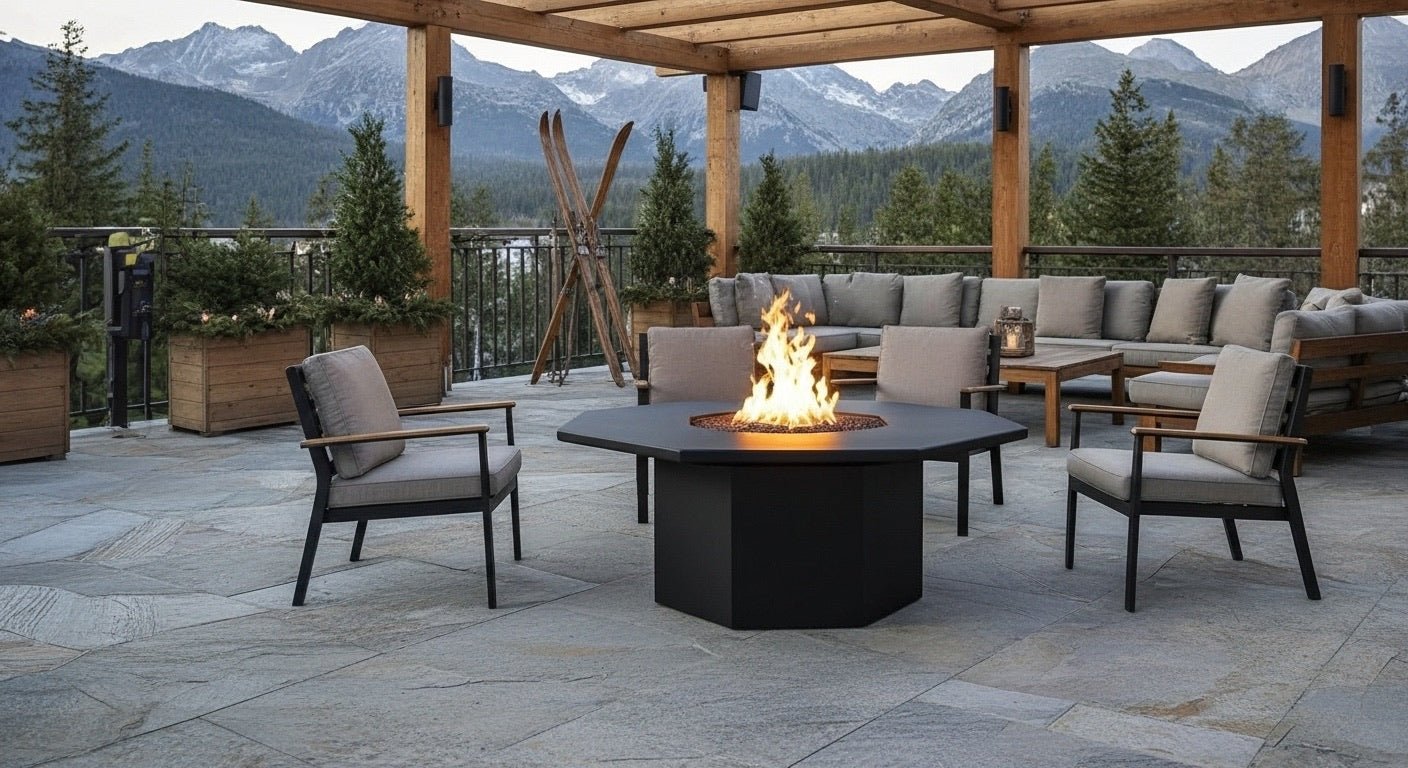

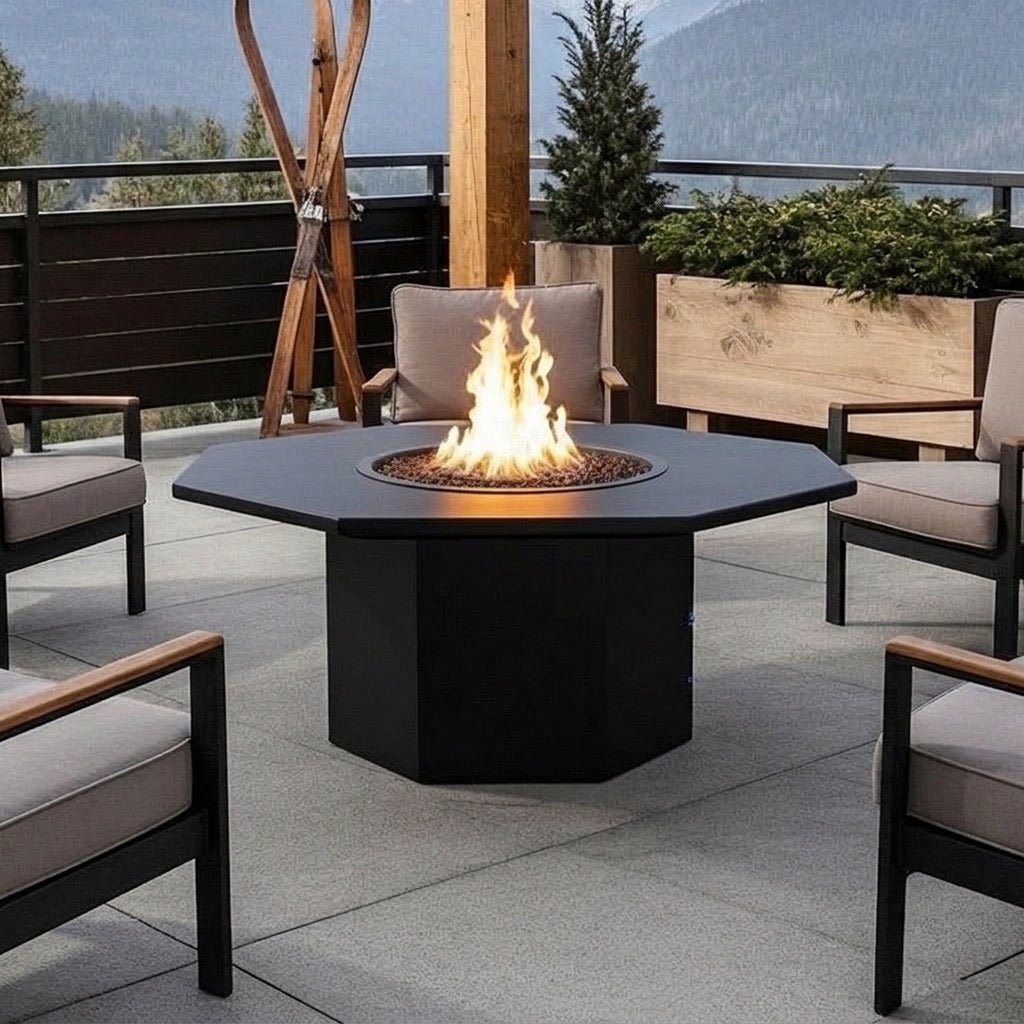

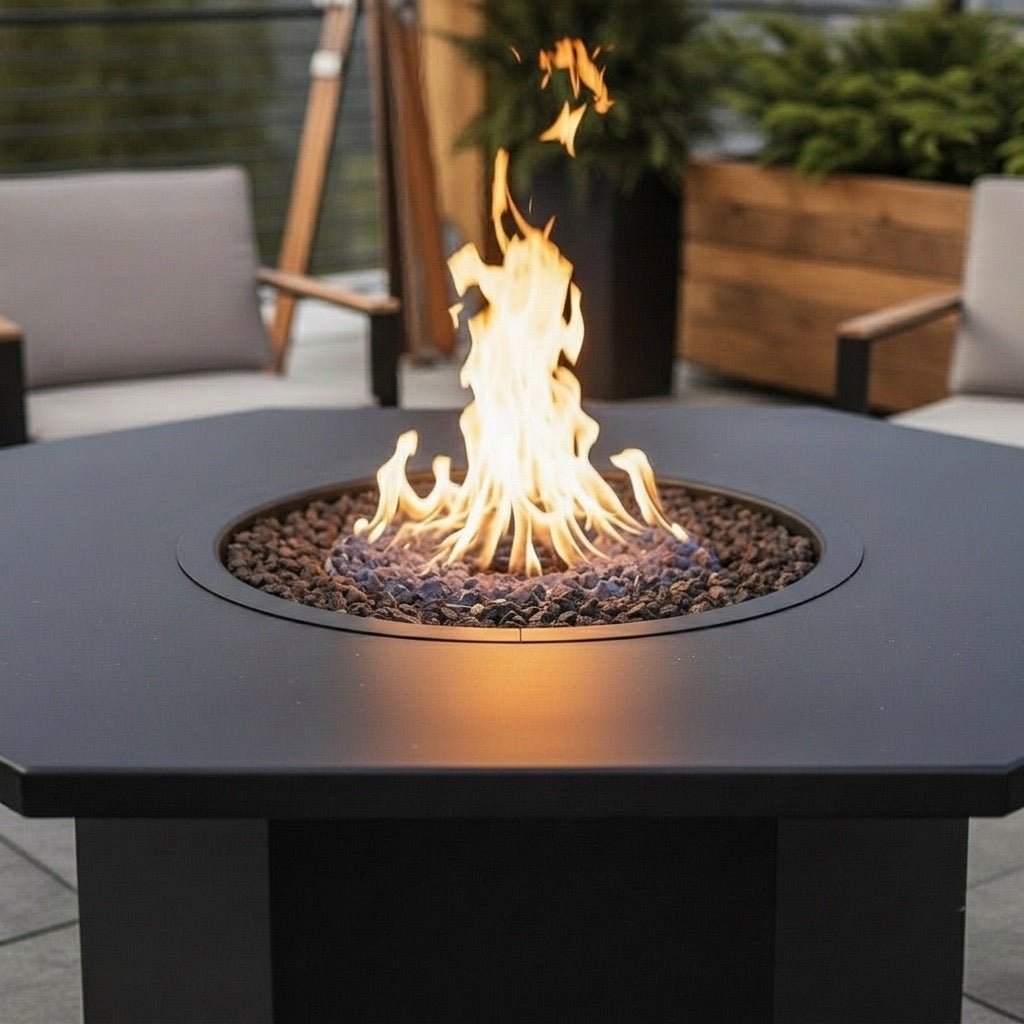

Octo Fire Dining Table – Architectural Series
The Octo Fire Dining Table features distinctive octagonal geometry and comfortable dining height that create a refined architectural presence. The faceted form introduces visual rhythm while naturally defining seating zones around the table. Fabricated from marine grade aluminum, it is engineered for long term outdoor durability with excellent resistance to corrosion, moisture, and temperature extremes.
Key Features
• Handcrafted construction with seamless edges and refined corner detailing
• No visible fasteners for a clean, uninterrupted exterior
• Sculpted architectural form with a smooth, continuous surface
• Marine grade aluminum construction for long term outdoor durability
• Premium powder coated finishes for maximum depth, richness and visual character
• High performance burner system with precision flame output
• Available in brass or stainless steel burner configurations
• Compatible with natural gas or propane
• CSA certified burner systems with bluetooth/wifi ignition options
Important Installation Note
Some assembly is required. Final gas and electrical connections must be completed by a licensed professional in accordance with local codes.
You may purchase physical powder coat samples directly on our site for all standard colors. This allows you to review color and texture before finalizing your selection.
You may also explore the full color libraries from our preferred supplier:
Not all available colors are stocked as standard options. Contact us to confirm availability and suitability.
Powder Coating
Modofire finishes use premium exterior powder coating for long-term durability and color stability.
Texture
Fine sand texture with low sheen that reduces glare and helps hide fingerprints and wear.
Metallic
Smooth finish with fine metallic flake that adds subtle reflectivity and depth without high gloss.
Vein Texture
Two-tone finish with natural veining that adds movement while disguising dust and weathering.
Stone Texture
Mineral-textured coating that replicates the look and feel of natural stone.
Artisan Patina
Hand-finished layers applied over powder coat. Each piece has natural variation with a flat-to-satin sheen.
Powder Coating Care
Clean occasionally with mild soap and water using a soft cloth or sponge, then rinse well.
Avoid abrasive pads, steel wool, solvents, bleach, acidic cleaners, and close-range pressure washing.
In coastal or dusty environments, clean more often to remove salt and buildup.
Minor marks are cosmetic, and textured finishes naturally help conceal wear. Patina finishes should be cleaned gently with soap and water only.
What's Included
Every Modofire fire feature includes the components required for installation based on the burner, ignition system, fuel type, and options selected. Components may vary depending on the specific model, customization, and selected upgrades.
Standard Components
- Burner assembly
- Selected ignition system
- Key valve (manual ignition systems)
- Whistle-free flexible gas lines
- Required fittings and hardware
- Mounting brackets and internal support components
Optional Components (When Selected)
- Fire media
- Wind guards
- Burner lid
- Protective cover
- Timer switch
- Emergency stop
- Wireless remote or app controls
- Battery backup or rechargeable battery system
- Additional accessories and upgrades purchased with your fire feature
Shipping
- Some components, accessories, and fire media may be packaged separately within the shipment to help prevent damage during transit.
Important Installation Notice: Modofire fire features are intended for professional installation only. Some assembly is required, including the installation of burner components, gas connections, electrical connections (where applicable), and optional accessories. All installation, gas piping, electrical work, testing, and commissioning must be completed by a qualified licensed professional in accordance with all applicable local building codes, fuel gas codes, and electrical codes.
Circa & Octo Series
Burner Options & BTU Output
36" | Stainless Steel: 90k BTU | Brass: 140k BTU
48" | Stainless Steel: 150k BTU | Brass: 180k BTU
54" | Stainless Steel: 150k BTU | Brass: 240k BTU
60" | Stainless Steel: 296k BTU | Brass: 300k BTU
72" | Stainless Steel: 300k BTU | Brass: 360k BTU
Stainless Steel Burner Data Sheets:
Stainless Steel Jet Burner with Electronic Ignition - ALL SIZES
Brass Burner Data Sheets
Brass Jet Burner 140K BTU - 36"D Fire Table
Brass Jet Burner 180K BTU - 48"D Fire Table
Brass Jet Burner 240K BTU - 54"D Fire Table
Brass Jet Burner 300K BTU - 60"D Fire Table
Brass Jet Burner 360K BTU - 72"D Fire Table
Choosing a Burner
Stainless Steel: Excellent durability, corrosion resistance, and value.
Brass: Premium upgrade with higher BTU output, larger flames, and excellent performance in coastal and poolside environments.
Both: CSA certified, NG/LP compatible, lifetime burner warranty.
Ignition Options
Every Modofire fire feature is available with one of three ignition systems. The right choice depends on your desired level of convenience, safety, and automation.
Push Button Spark Ignition
Our standard ignition system. Simply open the key valve and press the igniter to light the burner. Flame height is manually adjusted using the key valve.
Match-lit Specification Sheet (HPC)
Match-lit Spark Ignition Specification Sheet (HPC)
Best For
- Simple residential installations
- No electrical service
- Lowest cost
Features
- No electrical power required
- Push button or match lighting
- Manual flame adjustment
- Natural Gas or Propane
Standing Pilot Safety Ignition (FPPK)
A standing pilot continuously lights the burner while a flame-proving safety system monitors the pilot. If the pilot flame goes out, the gas supply automatically shuts off.
FFPK - Flame Sense Ignition Specification Sheet
Best For
- Added safety without electricity
- Windier environments
- Residential applications
Features
- No electrical power required
- Standing pilot flame
- Automatic gas shutoff
- Manual operation
- Natural Gas or Propane
All Weather Electronic Ignition (AWEIS)
Our premium ignition system automatically lights, monitors, and relights the burner. If the flame cannot be re-established, the gas supply automatically shuts off.
Compatible with remotes, timers, Bluetooth, WiFi, smart home systems, and commercial building automation.
Specifications Sheets: Which burner brand will vary dependent on chosen burner configuration.
AWEIS - Electronic Ignition Specification Sheet (Flame-tec) - Brass or Stainless Burners
AWEIS - Electronic Ignition Specification Sheet (HPC) - Stainless Burners
AWEIS - Electronic Ignition Specification Sheet (Warming Trends) - Brass Burners
Best For
- Luxury homes
- Commercial & hospitality
- Fire & water features
- Smart home integration
Features
- Automatic ignition & relight
- Continuous flame monitoring
- Automatic gas shutoff
- 12VAC low voltage
- CSA Certified
- Hot Surface Ignition (HSI)
- Stainless steel enclosure
- LED diagnostics
- Natural Gas or Propane
- Optional Bluetooth & WiFi controls
- 24-month manufacturer warranty
Compare Ignition Systems
| Feature | Push Button | FPPK | AWEIS |
|---|---|---|---|
| No electrical power required | ✓ | ✓ | |
| Lowest cost | ✓ | ||
| Automatic gas shutoff | ✓ | ✓ | |
| Automatic relight | ✓ | ||
| Smart home compatible | ✓ | ||
| Commercial use | ✓ | ✓ | |
| Pool & water features | ✓ |
Which Should I Choose?
Push Button for simplicity and value.
FPPK for manual operation with added flame safety.
AWEIS for maximum convenience, automation, and smart control.
Fire Media Options
Fire Glass: Contemporary appearance with reflective surfaces that enhance flame visibility and color.

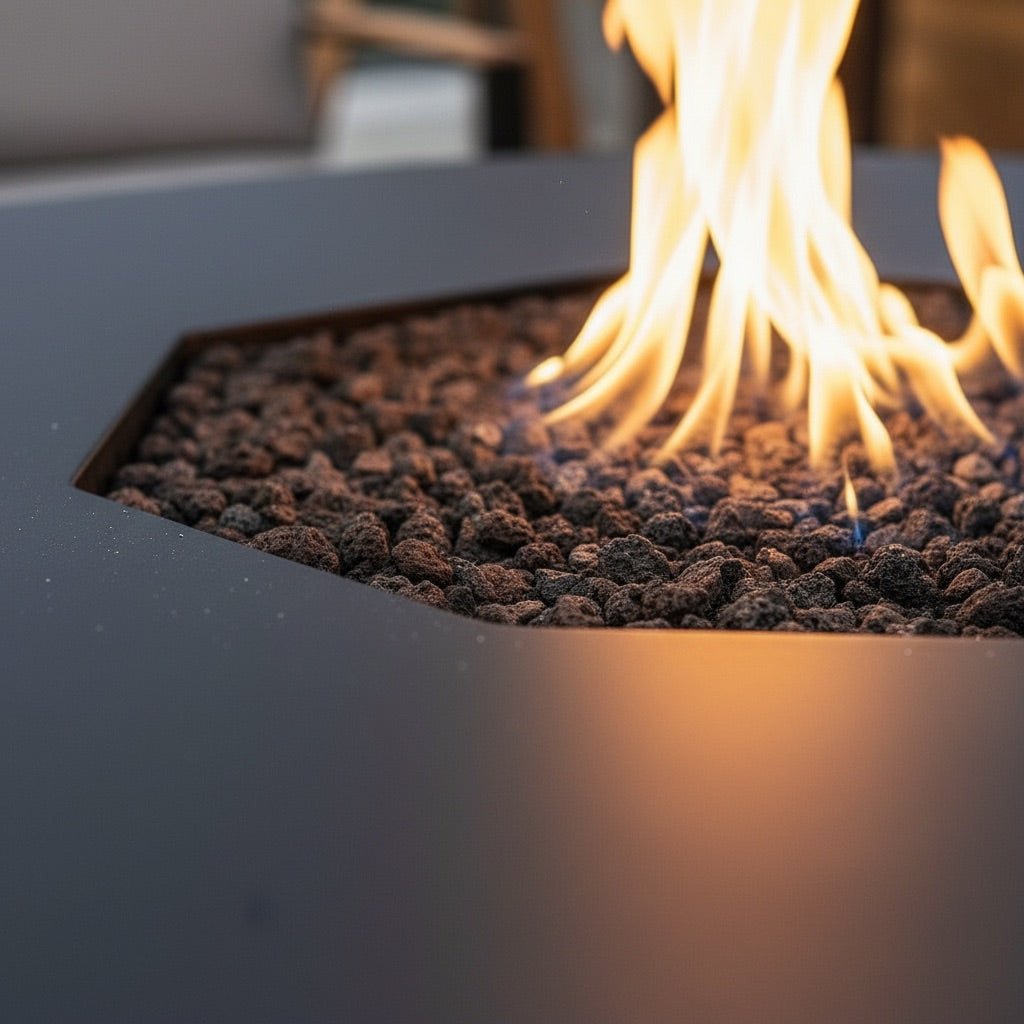

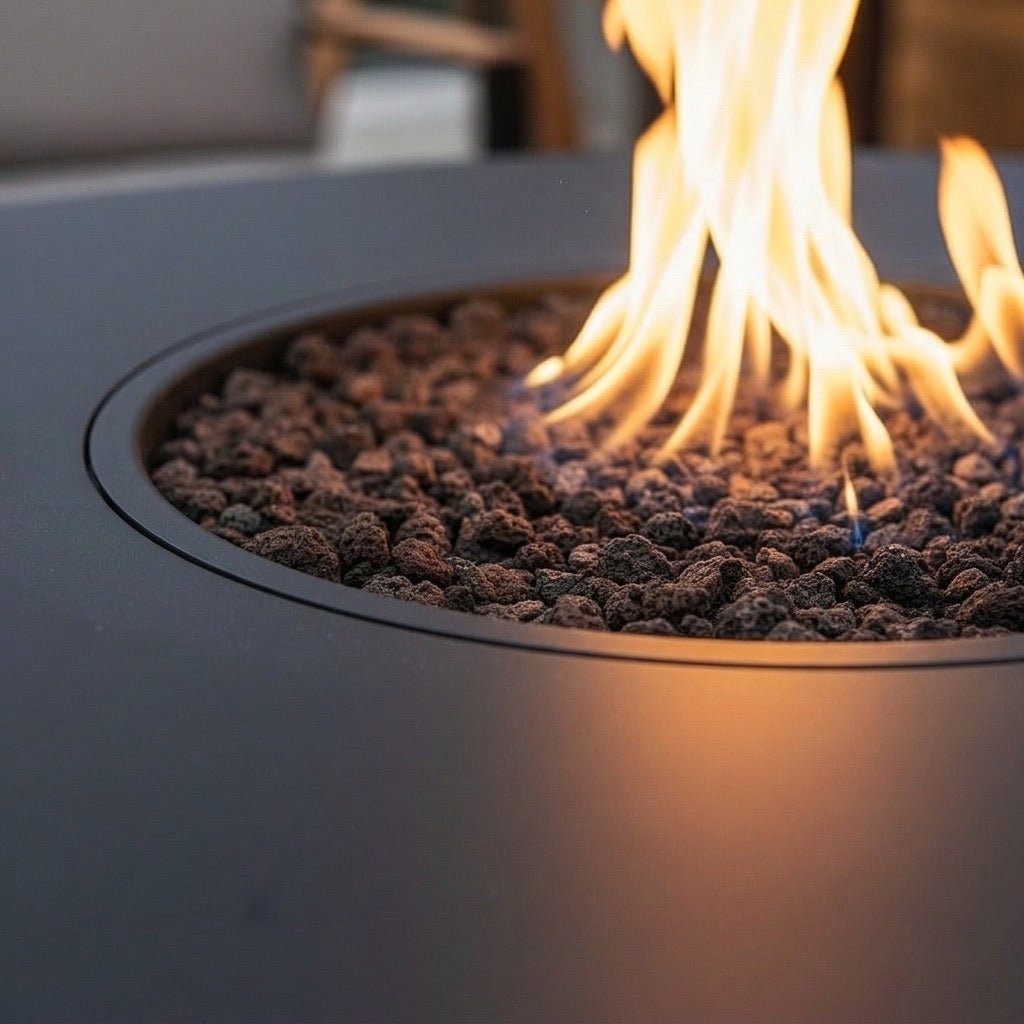

Lava Rock: Traditional volcanic rock offering a natural appearance and excellent heat resistance.
Rolled Lava Stones: Larger hand selected stones that create a more sculptural and organic presentation with greater flame visibility.
Choosing Fire Media
Fire Glass: Best for modern designs and a clean architectural appearance.
Lava Rock: Most economical option with a timeless natural look.
Rolled Lava Stones: Premium upgrade offering a more organic, upscale appearance with less visual density around the flame.
Media Guidelines
Most installations use approximately 2" to 3" of media depth above the burner surface. Larger fire features and linear burners may require additional media depending on burner size, opening dimensions, and desired appearance.
Final media selection and quantity are largely based on personal preference. Please refer to individual media product listings for available colors, sizes, and coverage recommendations.
Available Options: Fire Glass | Lava Rock | Rolled Lava Stones
Lighting
Optional integrated lighting systems are available for all fire, fountain, and spillway inserts. Modofire utilizes Blue Thumb IllumiGlow® and compatible low voltage lighting components to ensure full integration with basin, pump, and spillway systems.
Includes when selected:
• IllumiGlow® color changing LED pond and garden lights
• IllumiGlow® starter packs or single light kits depending on layout
• 12V outdoor rated transformers sized to the lighting load
• Raintight low voltage power supplies
• 2 pin splitters and connection hardware as required
• Optional replacement MR16 color changing bulbs
• Compatible basin lighting integration for Formal Falls® systems
Lighting applications vary by configuration:
Fire Inserts
Lighting is typically integrated through screened openings, perforations, interior pan sidewalls, or bottom illumination to create glow effects beneath or around the flame.
Fountain Inserts
Submersible or basin mounted IllumiGlow® fixtures are positioned within the interior catch basin or reservoir to illuminate moving water and vertical jets.
Spillway Systems
Directional pond and garden lights are positioned to wash the spillway face, basin, or falling sheet of water for full width illumination.
All lighting systems are low voltage and exterior rated for wet environments. Transformers and power supplies are sized per installation. Final electrical connections must be completed by a licensed professional.
Because every Modofire system is custom built, lighting placement, quantity, and transformer sizing vary based on scale, layout, and design intent.
Shipping & Lead Time
Lead Time: Most products are made to order. Lead times vary by product, finish, and burner system and are provided as estimates only. Transit time begins once the order ships.
Shipping Method: Products ship from Modofire or our domestic fabrication partners. Shipping method and cost are based on product size, weight, destination, and delivery requirements.
Delivery Type: Smaller items ship via standard ground carriers. Larger fire pits, fire tables, and custom fabrications ship crated by freight with scheduled curbside liftgate delivery. Placement, uncrating, assembly, and installation are not included.
Inspection: Customers are responsible for ensuring site access and inspecting deliveries upon arrival. Any visible damage must be noted on the carrier's delivery receipt before signing.
Installation Timing: Installation should be scheduled only after shipment confirmation is received.
Important: Modofire is not responsible for delays caused by carriers, weather, permitting, site conditions, or other factors beyond our control.
Warranty & Coverage
Warranty coverage is divided between the fire vessel and the burner and control components.
Fire Vessel and Enclosure
5 year limited warranty covering structural defects in materials and workmanship under normal outdoor use. Surface finishes, patina, and cosmetic changes are not considered structural and are excluded.
Burners and Components
Burners in stainless steel or brass carry a lifetime warranty. Electronics and gas valves are covered for 3 years residential and 1 year commercial. Pilot assemblies are covered for 2 years residential and 1 year commercial. Stainless steel burner pans and valve boxes are covered for 5 years residential and 1 year commercial.
Terms and Exclusions
Warranty begins at shipment and covers replacement parts and factory repair labor only. Installation, removal, freight, and on site labor are excluded. Normal wear, finish variation, heat discoloration, misuse, improper installation, unauthorized modifications, and indirect damages are not covered.
Returns and Cancellations
Most Modofire products are custom made to order and fabricated specifically for each project.
Cancellations
Orders cancelled within 72 hours receive a full refund. Cancellations after 72 hours and before production are subject to a 3 percent fee. Once production or shipping begins, orders cannot be cancelled.
Returns
Custom and made to order products are not eligible for return. This includes fire pits, fire tables, bowls, planters, sculptures, and all fabricated aluminum, steel, or concrete products.
Standard Items
Eligible standard items must be unused, in original packaging, and returned within 30 days of delivery with prior authorization. A 12 percent restocking fee applies and return shipping is the responsibility of the buyer. Refunds are issued after inspection.
Finish Variations
Minor variations in color, texture, or finish are inherent to the fabrication process and are not considered defects.
Exceptions
If Modofire is unable to fulfill an order due to production or material constraints, a full refund will be issued.
Gas & Electrical Requirements
To help ensure proper performance, your fire feature will require an adequate gas supply and, depending on the ignition option selected, may require electrical power.
Gas Supply Requirements
Available for Natural Gas (NG) or Liquid Propane (LP). Most installations connect to an existing gas line or an external propane tank.
Most residential fire features operate between 90k and 300k BTU. Larger fire tables and commercial installations may require 300k BTU to 600k+ BTU.
As burner size increases, larger gas lines and sufficient gas supply become increasingly important.
Reference Charts: Natural Gas Sizing Chart
Natural Gas Pipe Sizing Guide (Approximate Maximum BTU Capacity)
- 1/2" Pipe • 20 ft: 118k BTU • 50 ft: 72k BTU • 100 ft: 50k BTU
- 3/4" Pipe • 20 ft: 247k BTU • 50 ft: 151k BTU • 100 ft: 104k BTU
- 1" Pipe • 20 ft: 466k BTU • 50 ft: 284k BTU • 100 ft: 195k BTU
- 1¼" Pipe • 20 ft: 957k BTU • 50 ft: 583k BTU • 100 ft: 400k BTU
Liquid Propane Pipe Sizing Guide (Approximate Maximum BTU Capacity)
- 1/2" Pipe • 20 ft: 200k BTU • 50 ft: 122k BTU • 100 ft: 94k BTU
- 3/4" Pipe • 20 ft: 418k BTU • 50 ft: 255k BTU • 100 ft: 197k BTU
- 1" Pipe • 20 ft: 787k BTU • 50 ft: 480k BTU • 100 ft: 372k BTU
- 1¼" Pipe • 20 ft: 1,620k BTU • 50 ft: 985k BTU • 100 ft: 763k BTU
Typical Examples
- • 150k BTU fire feature: Often served by a 3/4" gas line
- • 300k BTU fire feature: Often served by a 1" gas line
- • 500k BTU fire feature: Often served by a 1¼" gas line
Actual requirements vary based on pipe length, fittings, regulators, gas meter capacity, elevation, and other connected appliances. Pipe length should also account for fittings, with the manufacturer reference chart noting approximately 5 ft of added length per fitting.
Ignition & Electrical Requirements
The following ignition and control options are available depending on your desired features and available power source.
Push Button Spark Ignition: No electrical service required.
All Weather Electronic Ignition: Requires a nearby 120VAC power source.
Bluetooth & WiFi Control Module: Optional add on for compatible electronic ignition systems. Utilizes the same 120VAC power source as the ignition system.
Rechargeable Battery Bluetooth & WiFi Module: Optional all in one battery powered ignition and control system for installations where line voltage is unavailable or difficult to access.
Available Controls
Wall Switches • Timer Switches • Emergency Stops • Bluetooth • WiFi • Hi/Lo Flame Control • Smart Home Integration • Building Automation Systems
Professional Installation
Final gas and electrical connections must be completed by qualified licensed professionals in accordance with local codes and regulations.
Gas sizing charts and BTU references are provided as general guidelines only. Actual gas availability varies by installation. Always consult a licensed gas professional to verify gas capacity, pipe sizing, pressure, regulator sizing, meter capacity, and code compliance before installation.
Production Time: Approximately 12 weeks
Shipping Time: Typically 3 to 5 business days after completion
Each Modofire piece is custom made to order. For the most accurate timeline, please contact us prior to ordering.
Adding product to your cart
Octo Fire Dining Table – Architectural Series
The Octo Fire Dining Table features distinctive octagonal geometry and comfortable dining height that create a refined architectural presence. The faceted form introduces visual rhythm while naturally defining seating zones around the table. Fabricated from marine grade aluminum, it is engineered for long term outdoor durability with excellent resistance to corrosion, moisture, and temperature extremes.
Key Features
• Handcrafted construction with seamless edges and refined corner detailing
• No visible fasteners for a clean, uninterrupted exterior
• Sculpted architectural form with a smooth, continuous surface
• Marine grade aluminum construction for long term outdoor durability
• Premium powder coated finishes for maximum depth, richness and visual character
• High performance burner system with precision flame output
• Available in brass or stainless steel burner configurations
• Compatible with natural gas or propane
• CSA certified burner systems with bluetooth/wifi ignition options
Important Installation Note
Some assembly is required. Final gas and electrical connections must be completed by a licensed professional in accordance with local codes.
You may purchase physical powder coat samples directly on our site for all standard colors. This allows you to review color and texture before finalizing your selection.
You may also explore the full color libraries from our preferred supplier:
Not all available colors are stocked as standard options. Contact us to confirm availability and suitability.
Powder Coating
Modofire finishes use premium exterior powder coating for long-term durability and color stability.
Texture
Fine sand texture with low sheen that reduces glare and helps hide fingerprints and wear.
Metallic
Smooth finish with fine metallic flake that adds subtle reflectivity and depth without high gloss.
Vein Texture
Two-tone finish with natural veining that adds movement while disguising dust and weathering.
Stone Texture
Mineral-textured coating that replicates the look and feel of natural stone.
Artisan Patina
Hand-finished layers applied over powder coat. Each piece has natural variation with a flat-to-satin sheen.
Powder Coating Care
Clean occasionally with mild soap and water using a soft cloth or sponge, then rinse well.
Avoid abrasive pads, steel wool, solvents, bleach, acidic cleaners, and close-range pressure washing.
In coastal or dusty environments, clean more often to remove salt and buildup.
Minor marks are cosmetic, and textured finishes naturally help conceal wear. Patina finishes should be cleaned gently with soap and water only.
What's Included
Every Modofire fire feature includes the components required for installation based on the burner, ignition system, fuel type, and options selected. Components may vary depending on the specific model, customization, and selected upgrades.
Standard Components
- Burner assembly
- Selected ignition system
- Key valve (manual ignition systems)
- Whistle-free flexible gas lines
- Required fittings and hardware
- Mounting brackets and internal support components
Optional Components (When Selected)
- Fire media
- Wind guards
- Burner lid
- Protective cover
- Timer switch
- Emergency stop
- Wireless remote or app controls
- Battery backup or rechargeable battery system
- Additional accessories and upgrades purchased with your fire feature
Shipping
- Some components, accessories, and fire media may be packaged separately within the shipment to help prevent damage during transit.
Important Installation Notice: Modofire fire features are intended for professional installation only. Some assembly is required, including the installation of burner components, gas connections, electrical connections (where applicable), and optional accessories. All installation, gas piping, electrical work, testing, and commissioning must be completed by a qualified licensed professional in accordance with all applicable local building codes, fuel gas codes, and electrical codes.
Circa & Octo Series
Burner Options & BTU Output
36" | Stainless Steel: 90k BTU | Brass: 140k BTU
48" | Stainless Steel: 150k BTU | Brass: 180k BTU
54" | Stainless Steel: 150k BTU | Brass: 240k BTU
60" | Stainless Steel: 296k BTU | Brass: 300k BTU
72" | Stainless Steel: 300k BTU | Brass: 360k BTU
Stainless Steel Burner Data Sheets:
Stainless Steel Jet Burner with Electronic Ignition - ALL SIZES
Brass Burner Data Sheets
Brass Jet Burner 140K BTU - 36"D Fire Table
Brass Jet Burner 180K BTU - 48"D Fire Table
Brass Jet Burner 240K BTU - 54"D Fire Table
Brass Jet Burner 300K BTU - 60"D Fire Table
Brass Jet Burner 360K BTU - 72"D Fire Table
Choosing a Burner
Stainless Steel: Excellent durability, corrosion resistance, and value.
Brass: Premium upgrade with higher BTU output, larger flames, and excellent performance in coastal and poolside environments.
Both: CSA certified, NG/LP compatible, lifetime burner warranty.
Ignition Options
Every Modofire fire feature is available with one of three ignition systems. The right choice depends on your desired level of convenience, safety, and automation.
Push Button Spark Ignition
Our standard ignition system. Simply open the key valve and press the igniter to light the burner. Flame height is manually adjusted using the key valve.
Match-lit Specification Sheet (HPC)
Match-lit Spark Ignition Specification Sheet (HPC)
Best For
- Simple residential installations
- No electrical service
- Lowest cost
Features
- No electrical power required
- Push button or match lighting
- Manual flame adjustment
- Natural Gas or Propane
Standing Pilot Safety Ignition (FPPK)
A standing pilot continuously lights the burner while a flame-proving safety system monitors the pilot. If the pilot flame goes out, the gas supply automatically shuts off.
FFPK - Flame Sense Ignition Specification Sheet
Best For
- Added safety without electricity
- Windier environments
- Residential applications
Features
- No electrical power required
- Standing pilot flame
- Automatic gas shutoff
- Manual operation
- Natural Gas or Propane
All Weather Electronic Ignition (AWEIS)
Our premium ignition system automatically lights, monitors, and relights the burner. If the flame cannot be re-established, the gas supply automatically shuts off.
Compatible with remotes, timers, Bluetooth, WiFi, smart home systems, and commercial building automation.
Specifications Sheets: Which burner brand will vary dependent on chosen burner configuration.
AWEIS - Electronic Ignition Specification Sheet (Flame-tec) - Brass or Stainless Burners
AWEIS - Electronic Ignition Specification Sheet (HPC) - Stainless Burners
AWEIS - Electronic Ignition Specification Sheet (Warming Trends) - Brass Burners
Best For
- Luxury homes
- Commercial & hospitality
- Fire & water features
- Smart home integration
Features
- Automatic ignition & relight
- Continuous flame monitoring
- Automatic gas shutoff
- 12VAC low voltage
- CSA Certified
- Hot Surface Ignition (HSI)
- Stainless steel enclosure
- LED diagnostics
- Natural Gas or Propane
- Optional Bluetooth & WiFi controls
- 24-month manufacturer warranty
Compare Ignition Systems
| Feature | Push Button | FPPK | AWEIS |
|---|---|---|---|
| No electrical power required | ✓ | ✓ | |
| Lowest cost | ✓ | ||
| Automatic gas shutoff | ✓ | ✓ | |
| Automatic relight | ✓ | ||
| Smart home compatible | ✓ | ||
| Commercial use | ✓ | ✓ | |
| Pool & water features | ✓ |
Which Should I Choose?
Push Button for simplicity and value.
FPPK for manual operation with added flame safety.
AWEIS for maximum convenience, automation, and smart control.
Fire Media Options
Fire Glass: Contemporary appearance with reflective surfaces that enhance flame visibility and color.
Lava Rock: Traditional volcanic rock offering a natural appearance and excellent heat resistance.
Rolled Lava Stones: Larger hand selected stones that create a more sculptural and organic presentation with greater flame visibility.
Choosing Fire Media
Fire Glass: Best for modern designs and a clean architectural appearance.
Lava Rock: Most economical option with a timeless natural look.
Rolled Lava Stones: Premium upgrade offering a more organic, upscale appearance with less visual density around the flame.
Media Guidelines
Most installations use approximately 2" to 3" of media depth above the burner surface. Larger fire features and linear burners may require additional media depending on burner size, opening dimensions, and desired appearance.
Final media selection and quantity are largely based on personal preference. Please refer to individual media product listings for available colors, sizes, and coverage recommendations.
Available Options: Fire Glass | Lava Rock | Rolled Lava Stones
Lighting
Optional integrated lighting systems are available for all fire, fountain, and spillway inserts. Modofire utilizes Blue Thumb IllumiGlow® and compatible low voltage lighting components to ensure full integration with basin, pump, and spillway systems.
Includes when selected:
• IllumiGlow® color changing LED pond and garden lights
• IllumiGlow® starter packs or single light kits depending on layout
• 12V outdoor rated transformers sized to the lighting load
• Raintight low voltage power supplies
• 2 pin splitters and connection hardware as required
• Optional replacement MR16 color changing bulbs
• Compatible basin lighting integration for Formal Falls® systems
Lighting applications vary by configuration:
Fire Inserts
Lighting is typically integrated through screened openings, perforations, interior pan sidewalls, or bottom illumination to create glow effects beneath or around the flame.
Fountain Inserts
Submersible or basin mounted IllumiGlow® fixtures are positioned within the interior catch basin or reservoir to illuminate moving water and vertical jets.
Spillway Systems
Directional pond and garden lights are positioned to wash the spillway face, basin, or falling sheet of water for full width illumination.
All lighting systems are low voltage and exterior rated for wet environments. Transformers and power supplies are sized per installation. Final electrical connections must be completed by a licensed professional.
Because every Modofire system is custom built, lighting placement, quantity, and transformer sizing vary based on scale, layout, and design intent.
Shipping & Lead Time
Lead Time: Most products are made to order. Lead times vary by product, finish, and burner system and are provided as estimates only. Transit time begins once the order ships.
Shipping Method: Products ship from Modofire or our domestic fabrication partners. Shipping method and cost are based on product size, weight, destination, and delivery requirements.
Delivery Type: Smaller items ship via standard ground carriers. Larger fire pits, fire tables, and custom fabrications ship crated by freight with scheduled curbside liftgate delivery. Placement, uncrating, assembly, and installation are not included.
Inspection: Customers are responsible for ensuring site access and inspecting deliveries upon arrival. Any visible damage must be noted on the carrier's delivery receipt before signing.
Installation Timing: Installation should be scheduled only after shipment confirmation is received.
Important: Modofire is not responsible for delays caused by carriers, weather, permitting, site conditions, or other factors beyond our control.
Warranty & Coverage
Warranty coverage is divided between the fire vessel and the burner and control components.
Fire Vessel and Enclosure
5 year limited warranty covering structural defects in materials and workmanship under normal outdoor use. Surface finishes, patina, and cosmetic changes are not considered structural and are excluded.
Burners and Components
Burners in stainless steel or brass carry a lifetime warranty. Electronics and gas valves are covered for 3 years residential and 1 year commercial. Pilot assemblies are covered for 2 years residential and 1 year commercial. Stainless steel burner pans and valve boxes are covered for 5 years residential and 1 year commercial.
Terms and Exclusions
Warranty begins at shipment and covers replacement parts and factory repair labor only. Installation, removal, freight, and on site labor are excluded. Normal wear, finish variation, heat discoloration, misuse, improper installation, unauthorized modifications, and indirect damages are not covered.
Returns and Cancellations
Most Modofire products are custom made to order and fabricated specifically for each project.
Cancellations
Orders cancelled within 72 hours receive a full refund. Cancellations after 72 hours and before production are subject to a 3 percent fee. Once production or shipping begins, orders cannot be cancelled.
Returns
Custom and made to order products are not eligible for return. This includes fire pits, fire tables, bowls, planters, sculptures, and all fabricated aluminum, steel, or concrete products.
Standard Items
Eligible standard items must be unused, in original packaging, and returned within 30 days of delivery with prior authorization. A 12 percent restocking fee applies and return shipping is the responsibility of the buyer. Refunds are issued after inspection.
Finish Variations
Minor variations in color, texture, or finish are inherent to the fabrication process and are not considered defects.
Exceptions
If Modofire is unable to fulfill an order due to production or material constraints, a full refund will be issued.
Gas & Electrical Requirements
To help ensure proper performance, your fire feature will require an adequate gas supply and, depending on the ignition option selected, may require electrical power.
Gas Supply Requirements
Available for Natural Gas (NG) or Liquid Propane (LP). Most installations connect to an existing gas line or an external propane tank.
Most residential fire features operate between 90k and 300k BTU. Larger fire tables and commercial installations may require 300k BTU to 600k+ BTU.
As burner size increases, larger gas lines and sufficient gas supply become increasingly important.
Reference Charts: Natural Gas Sizing Chart
Natural Gas Pipe Sizing Guide (Approximate Maximum BTU Capacity)
- 1/2" Pipe • 20 ft: 118k BTU • 50 ft: 72k BTU • 100 ft: 50k BTU
- 3/4" Pipe • 20 ft: 247k BTU • 50 ft: 151k BTU • 100 ft: 104k BTU
- 1" Pipe • 20 ft: 466k BTU • 50 ft: 284k BTU • 100 ft: 195k BTU
- 1¼" Pipe • 20 ft: 957k BTU • 50 ft: 583k BTU • 100 ft: 400k BTU
Liquid Propane Pipe Sizing Guide (Approximate Maximum BTU Capacity)
- 1/2" Pipe • 20 ft: 200k BTU • 50 ft: 122k BTU • 100 ft: 94k BTU
- 3/4" Pipe • 20 ft: 418k BTU • 50 ft: 255k BTU • 100 ft: 197k BTU
- 1" Pipe • 20 ft: 787k BTU • 50 ft: 480k BTU • 100 ft: 372k BTU
- 1¼" Pipe • 20 ft: 1,620k BTU • 50 ft: 985k BTU • 100 ft: 763k BTU
Typical Examples
- • 150k BTU fire feature: Often served by a 3/4" gas line
- • 300k BTU fire feature: Often served by a 1" gas line
- • 500k BTU fire feature: Often served by a 1¼" gas line
Actual requirements vary based on pipe length, fittings, regulators, gas meter capacity, elevation, and other connected appliances. Pipe length should also account for fittings, with the manufacturer reference chart noting approximately 5 ft of added length per fitting.
Ignition & Electrical Requirements
The following ignition and control options are available depending on your desired features and available power source.
Push Button Spark Ignition: No electrical service required.
All Weather Electronic Ignition: Requires a nearby 120VAC power source.
Bluetooth & WiFi Control Module: Optional add on for compatible electronic ignition systems. Utilizes the same 120VAC power source as the ignition system.
Rechargeable Battery Bluetooth & WiFi Module: Optional all in one battery powered ignition and control system for installations where line voltage is unavailable or difficult to access.
Available Controls
Wall Switches • Timer Switches • Emergency Stops • Bluetooth • WiFi • Hi/Lo Flame Control • Smart Home Integration • Building Automation Systems
Professional Installation
Final gas and electrical connections must be completed by qualified licensed professionals in accordance with local codes and regulations.
Gas sizing charts and BTU references are provided as general guidelines only. Actual gas availability varies by installation. Always consult a licensed gas professional to verify gas capacity, pipe sizing, pressure, regulator sizing, meter capacity, and code compliance before installation.
