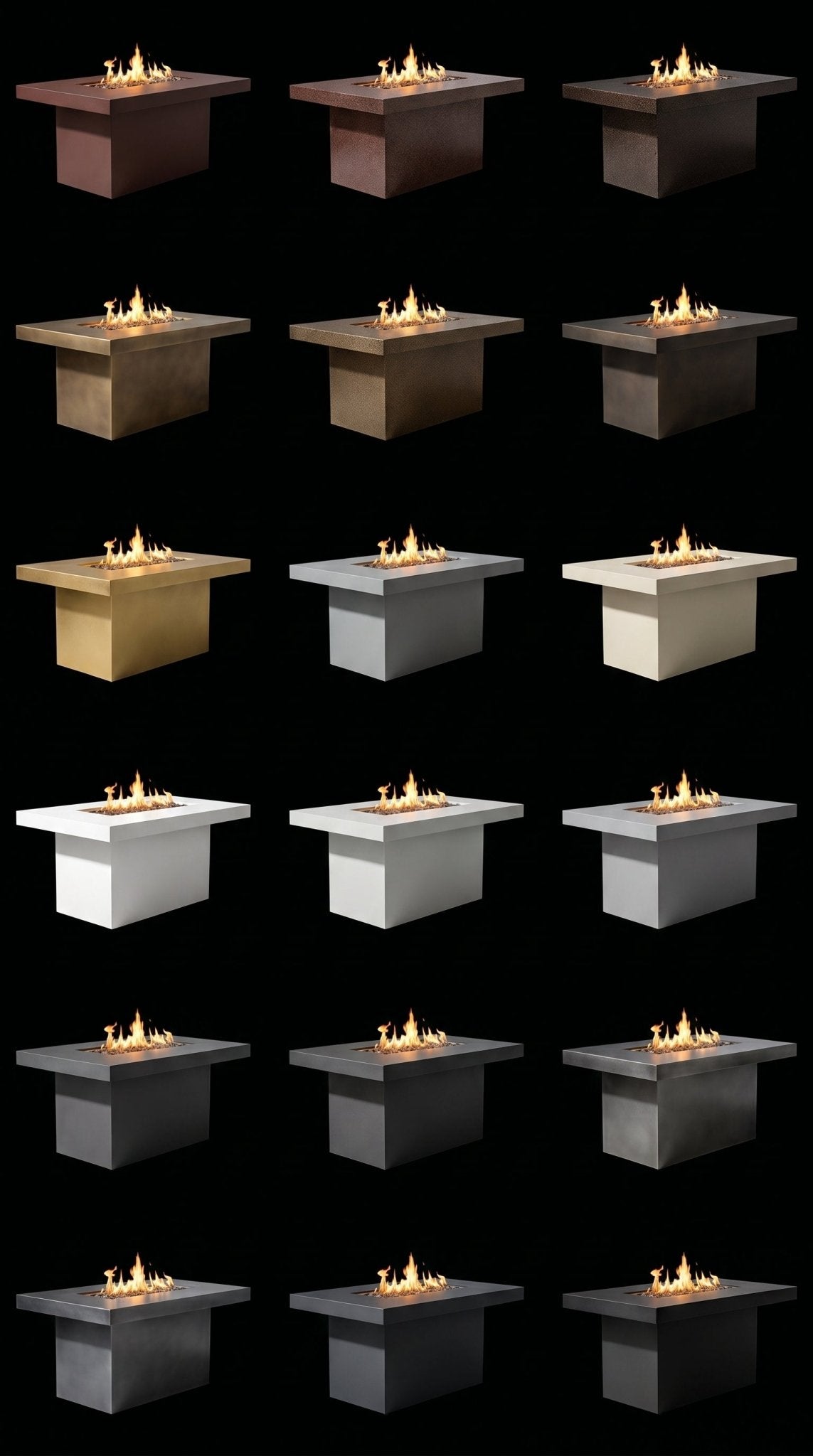

Lineo Bold Fire Bar Table – Architectural Series

The Lineo Bold Fire Bar Table is defined by its elongated linear geometry, substantial tabletop, and elevated bar height. The extended horizontal form emphasizes proportion and scale while the thicker tabletop adds visual weight and permanence. Fabricated from marine grade aluminum, the Lineo Bold Fire Bar Table is engineered for long term outdoor durability with excellent resistance to corrosion, moisture, and temperature extremes.

Key Features

• Handcrafted construction with seamless edges and refined corner detailing
• No visible fasteners for a clean, uninterrupted exterior
• Sculpted architectural form with a smooth, continuous surface
• Marine grade aluminum construction for long term outdoor durability
• Premium powder coated finishes for maximum depth, richness and visual character
• High performance burner system with precision flame output
• Available in brass or stainless steel burner configurations
• Compatible with natural gas or propane
• CSA certified burner systems with bluetooth/wifi ignition options

Important Installation Note
Some assembly is required. Final gas and electrical connections must be completed by a licensed professional in accordance with local codes.

What's Included

Every Modofire fire feature includes our premium component system, selected for performance, durability and a refined finished installation. Components may vary by model, size, BTU output, fuel type and configuration.

Standard Components

• Premium jet burner
• Push-button ignition system
• Premium rolled lava rock
• Whistle-free flexible gas lines
• Required fittings and hardware
• Mounting brackets and internal support components

Additional Components When Applicable

• Flame-Sense Ignitions
• Electronic Ignitions and controls
• Battery system (for electronic ignition)
• Burner lid
• Wind guard
• Protective cover
• Timer switch
• Emergency stop
• Wireless remote or app controls
• Other model-specific accessories

Shipping

Some components and fire media may be packaged separately within the shipment to help prevent damage during transit.

Important Installation Notice

Modofire fire features are intended for professional installation. Some assembly is required, including burner installation, gas connections, electrical connections where applicable, and accessories. All installation, gas piping, electrical work, testing and commissioning must be completed by a qualified licensed professional in accordance with applicable local codes.

See Product Description for Burner Sizes and BTU outputs

Features

• Premium jet burner systems
• Stainless steel and Brass options available
• Natural gas or propane compatible
• CSA certified
• UL compliant ignition options including switch, Bluetooth, or WiFi
• Residential and commercial ready
• Custom sizes and outputs available

Ignition Systems

Modofire fire features are available with several ignition systems based on burner output, installation requirements and the desired level of automation.

Battery Push-Button / Match-Lit | Standard (SC) and High Capacity (HC)
A simple, manually operated system requiring no electrical connection. The gas valve is opened by hand, and the burner is lit using either an integrated battery-powered spark igniter or a long-reach lighter. This option does not provide automatic flame monitoring or relighting. Flame height is adjusted manually using a keyed valve on the side of the fire feature.

Battery Flame-Sense | Standard Capacity (SC), Up to 250K BTU
A battery-operated flame-sensing system requiring no electrical connection. It provides convenient push-button ignition, continuous flame monitoring and automatic gas shutoff if the flame is lost. Flame height is adjusted manually using a control dial on the side of the fire feature.

Electronic Flame-Sense | Standard Capacity (SC), Up to 250K BTU
A fully automatic electronic ignition system with continuous flame monitoring, automatic relighting and safety shutoff. It can be integrated with switches, timers, remote controls and compatible home-automation systems. Flame height is adjusted manually using a keyed valve on the side of the fire feature.

Electronic Flame-Sense | High Capacity (HC), Over 250K BTU
Designed for higher-output burners and available only with electronic ignition. It provides fully automatic ignition, continuous flame monitoring, automatic relighting, safety shutoff and home-automation compatibility. High-capacity ignition is recommended for higher-BTU applications, although it may not be required for every burner configuration. Flame height is adjusted manually using a keyed valve on the side of the fire feature.

Very High Capacity (VHC) electronic ignition systems for burner outputs up to 640K BTU are also available.

Modofire uses premium ignition systems from Warming Trends, HPC, The Outdoor Plus, Firegear and other leading manufacturers. Each system is selected and configured for the burner, BTU output and installation requirements of the individual fire feature.

Fire Media

Premium rolled lava rock is included standard with every Modofire fire feature, providing a natural, refined appearance with excellent heat resistance and flame visibility.

Fire glass and other media options may be purchased separately.

Lighting

Optional integrated lighting systems are available for all fire, fountain, and spillway inserts. Modofire utilizes Blue Thumb IllumiGlow® and compatible low voltage lighting components to ensure full integration with basin, pump, and spillway systems.

Includes when selected:

• IllumiGlow® color changing LED pond and garden lights
• IllumiGlow® starter packs or single light kits depending on layout
• 12V outdoor rated transformers sized to the lighting load
• Raintight low voltage power supplies
• 2 pin splitters and connection hardware as required
• Optional replacement MR16 color changing bulbs
• Compatible basin lighting integration for Formal Falls® systems

Lighting applications vary by configuration:

Fire Inserts
Lighting is typically integrated through screened openings, perforations, interior pan sidewalls, or bottom illumination to create glow effects beneath or around the flame.

Fountain Inserts
Submersible or basin mounted IllumiGlow® fixtures are positioned within the interior catch basin or reservoir to illuminate moving water and vertical jets.

Spillway Systems
Directional pond and garden lights are positioned to wash the spillway face, basin, or falling sheet of water for full width illumination.

All lighting systems are low voltage and exterior rated for wet environments. Transformers and power supplies are sized per installation. Final electrical connections must be completed by a licensed professional.

Because every Modofire system is custom built, lighting placement, quantity, and transformer sizing vary based on scale, layout, and design intent.

Shipping & Lead Time

Lead Time: Most products are made to order. Lead times vary by product, finish, and burner system and are provided as estimates only. Transit time begins once the order ships.

Shipping Method: Products ship from Modofire or our domestic fabrication partners. Shipping method and cost are based on product size, weight, destination, and delivery requirements.

Delivery Type: Smaller items ship via standard ground carriers. Larger fire pits, fire tables, and custom fabrications ship crated by freight with scheduled curbside liftgate delivery. Placement, uncrating, assembly, and installation are not included.

Inspection: Customers are responsible for ensuring site access and inspecting deliveries upon arrival. Any visible damage must be noted on the carrier's delivery receipt before signing.

Installation Timing: Installation should be scheduled only after shipment confirmation is received.

Important: Modofire is not responsible for delays caused by carriers, weather, permitting, site conditions, or other factors beyond our control.

Warranty & Coverage

• Fire vessel and enclosure: 5 years
• Ignition and control components: 1 year, manufacturer backed
• Burners: manufacturer coverage may extend up to lifetime
• Finishes and cosmetic changes: not covered under normal wear, patina, or discoloration

Modofire provides a 5 year limited warranty against structural defects in the fire vessel and enclosure under normal outdoor use. Finish wear, patina, discoloration and other cosmetic changes are excluded.

Burner, ignition and control components are generally covered for 1 year from shipment unless a longer manufacturer warranty applies. Certain Warming Trends and HPC burners, for example, may carry lifetime manufacturer coverage.

Electronic ignition warranty claims and returns are coordinated through Modofire in partnership with the manufacturer. We will assist with warranty processing and facilitate access to manufacturer technical support when needed.

Warranty coverage is limited to replacement parts and factory repair. Installation, removal, freight, on site labor, misuse, improper installation, unauthorized modification and consequential damages are excluded. Manufacturer warranties remain subject to the manufacturer’s terms.

Returns

Returns and Cancellations

Most Modofire products are made to order and fabricated specifically for each project. Production and delivery timelines are estimates and may vary. Changes in timing or delivery dates are not grounds for cancellation, return or refund.

Cancellations
Orders cancelled within 72 hours receive a full refund. After 72 hours, cancellations approved before production begins are subject to a 3% cancellation fee. Once production begins, orders cannot be cancelled.

Made-to-Order Products
Made-to-order and custom fabricated products are not returnable. This includes fire tables, fire features, planters, sculptures and other fabricated products.

Standard Components and Accessories
Eligible non-fabricated items may be returned within 30 days with prior authorization. Items must be unused and in original packaging. A 12% restocking fee and return shipping costs may apply. Refunds are issued after inspection.

Finish Variations
Natural variations in color, texture, patina and finish are inherent to many materials and finishing processes and are not considered defects.

Exceptions
If Modofire is unable to fulfill an order due to production or material constraints, a full refund will be issued.

Maintenance & Care

Modofire powder coated aluminum fire tables are built for long-term outdoor use and require only routine maintenance.

Clean Surfaces
Wash with mild soap and water using a soft cloth. Avoid abrasive cleaners, solvents, bleach, and pressure washing. In coastal or poolside environments, clean more frequently to preserve the finish.

Burner Care
Keep burner ports free of leaves, insects, debris, and fire media dust. Clean gently with a soft brush or compressed air. Do not modify the burner. Install fire media loosely and evenly for proper flame performance.

Ignition Systems
Periodically inspect gas connections, wiring, controls, and ignition components. Keep electronic systems dry and allow them to dry completely if exposed to moisture. Test operation regularly and follow the ignition manufacturer's maintenance recommendations.

Covers & Lids
Always allow the fire table to cool before installing a lid or cover. Keeping the unit covered when not in use helps protect the finish and extends the life of the burner and ignition system.

Seasonal Inspection
Before each season and after extended storage, inspect the burner, gas connections, and ignition system. Replace worn components as needed and consult a qualified professional for service.

With routine cleaning and periodic inspections, your Modofire fire table will provide years of dependable performance and lasting beauty.

Gas & Electrical Requirements

To help ensure proper performance, your fire feature will require an adequate gas supply and, depending on the ignition option selected, may require electrical power.

Gas Supply Requirements

Available for Natural Gas (NG) or Liquid Propane (LP). Most installations connect to an existing gas line or an external propane tank.

Most residential fire features operate between 90k and 300k BTU. Larger fire tables and commercial installations may require 300k BTU to 600k+ BTU.

As burner size increases, larger gas lines and sufficient gas supply become increasingly important.

Reference Charts: Natural Gas Sizing Chart

Natural Gas Pipe Sizing Guide (Approximate Maximum BTU Capacity)

• 1/2" Pipe • 20 ft: 118k BTU • 50 ft: 72k BTU • 100 ft: 50k BTU
• 3/4" Pipe • 20 ft: 247k BTU • 50 ft: 151k BTU • 100 ft: 104k BTU
• 1" Pipe • 20 ft: 466k BTU • 50 ft: 284k BTU • 100 ft: 195k BTU
• 1¼" Pipe • 20 ft: 957k BTU • 50 ft: 583k BTU • 100 ft: 400k BTU

Liquid Propane Pipe Sizing Guide (Approximate Maximum BTU Capacity)

• 1/2" Pipe • 20 ft: 200k BTU • 50 ft: 122k BTU • 100 ft: 94k BTU
• 3/4" Pipe • 20 ft: 418k BTU • 50 ft: 255k BTU • 100 ft: 197k BTU
• 1" Pipe • 20 ft: 787k BTU • 50 ft: 480k BTU • 100 ft: 372k BTU
• 1¼" Pipe • 20 ft: 1,620k BTU • 50 ft: 985k BTU • 100 ft: 763k BTU

Typical Examples

• • 150k BTU fire feature: Often served by a 3/4" gas line
• • 300k BTU fire feature: Often served by a 1" gas line
• • 500k BTU fire feature: Often served by a 1¼" gas line

Actual requirements vary based on pipe length, fittings, regulators, gas meter capacity, elevation, and other connected appliances. Pipe length should also account for fittings, with the manufacturer reference chart noting approximately 5 ft of added length per fitting.

Ignition & Electrical Requirements

The following ignition and control options are available depending on your desired features and available power source.

Push Button Spark Ignition: No electrical service required.

All Weather Electronic Ignition: Requires a nearby 120VAC power source.

Bluetooth & WiFi Control Module: Optional add on for compatible electronic ignition systems. Utilizes the same 120VAC power source as the ignition system.

Rechargeable Battery Bluetooth & WiFi Module: Optional all in one battery powered ignition and control system for installations where line voltage is unavailable or difficult to access.

Available Controls

Wall Switches • Timer Switches • Emergency Stops • Bluetooth • WiFi • Hi/Lo Flame Control • Smart Home Integration • Building Automation Systems

Professional Installation

Final gas and electrical connections must be completed by qualified licensed professionals in accordance with local codes and regulations.

Gas sizing charts and BTU references are provided as general guidelines only. Actual gas availability varies by installation. Always consult a licensed gas professional to verify gas capacity, pipe sizing, pressure, regulator sizing, meter capacity, and code compliance before installation.
