Traytier Fire Pillar – Custom

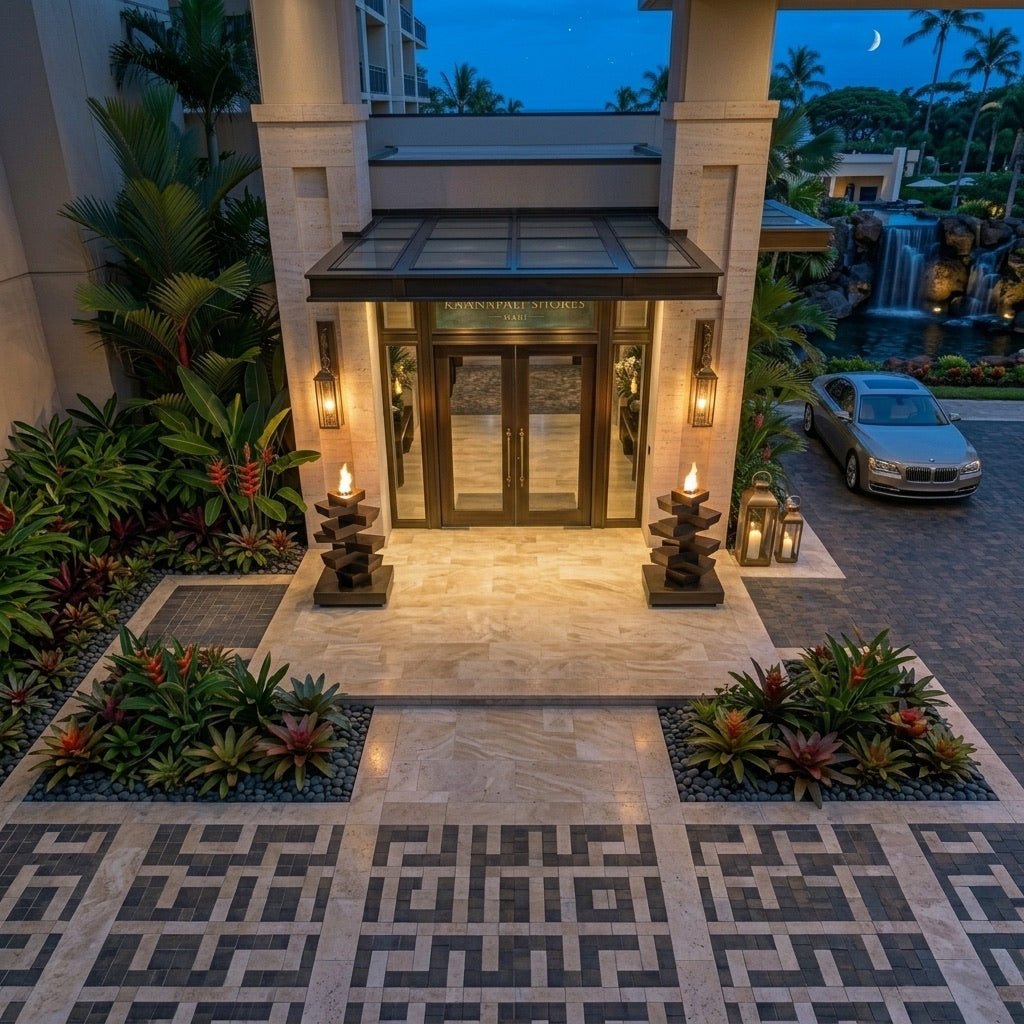

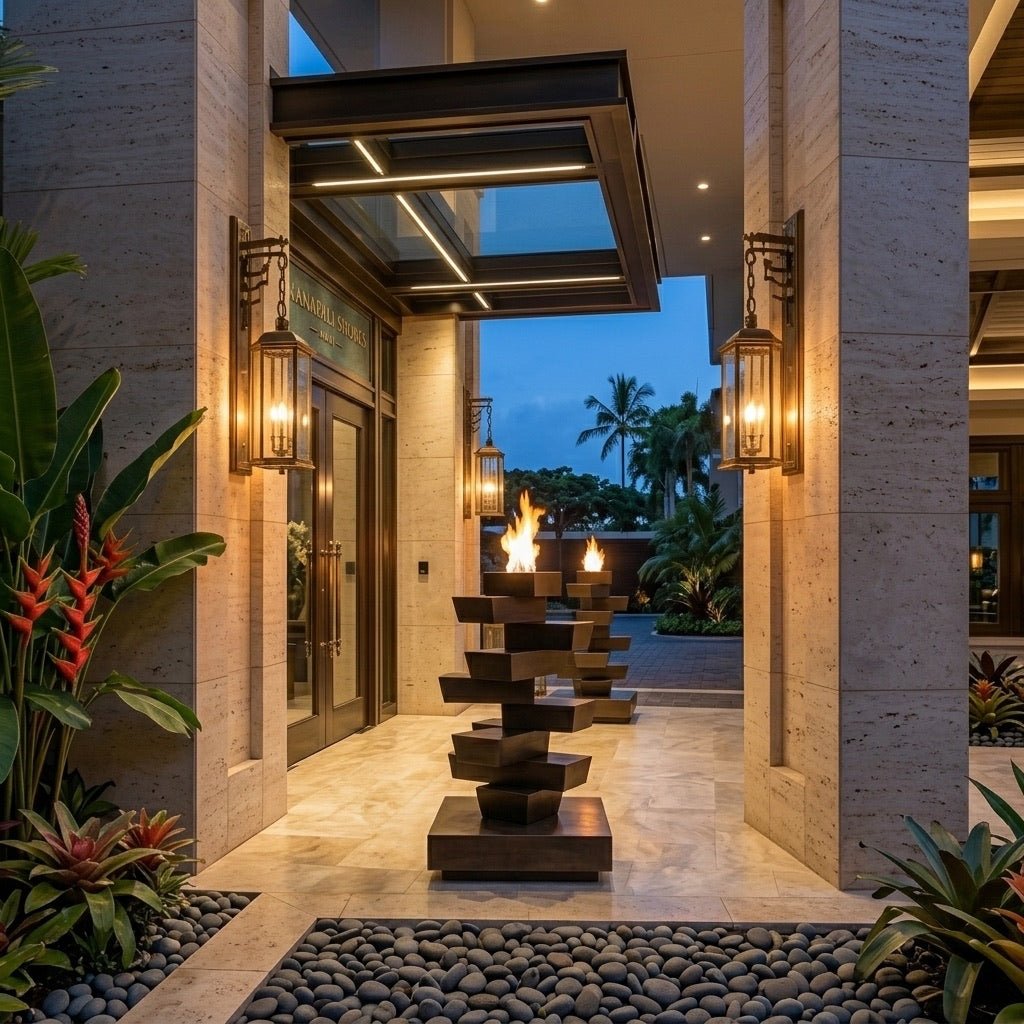

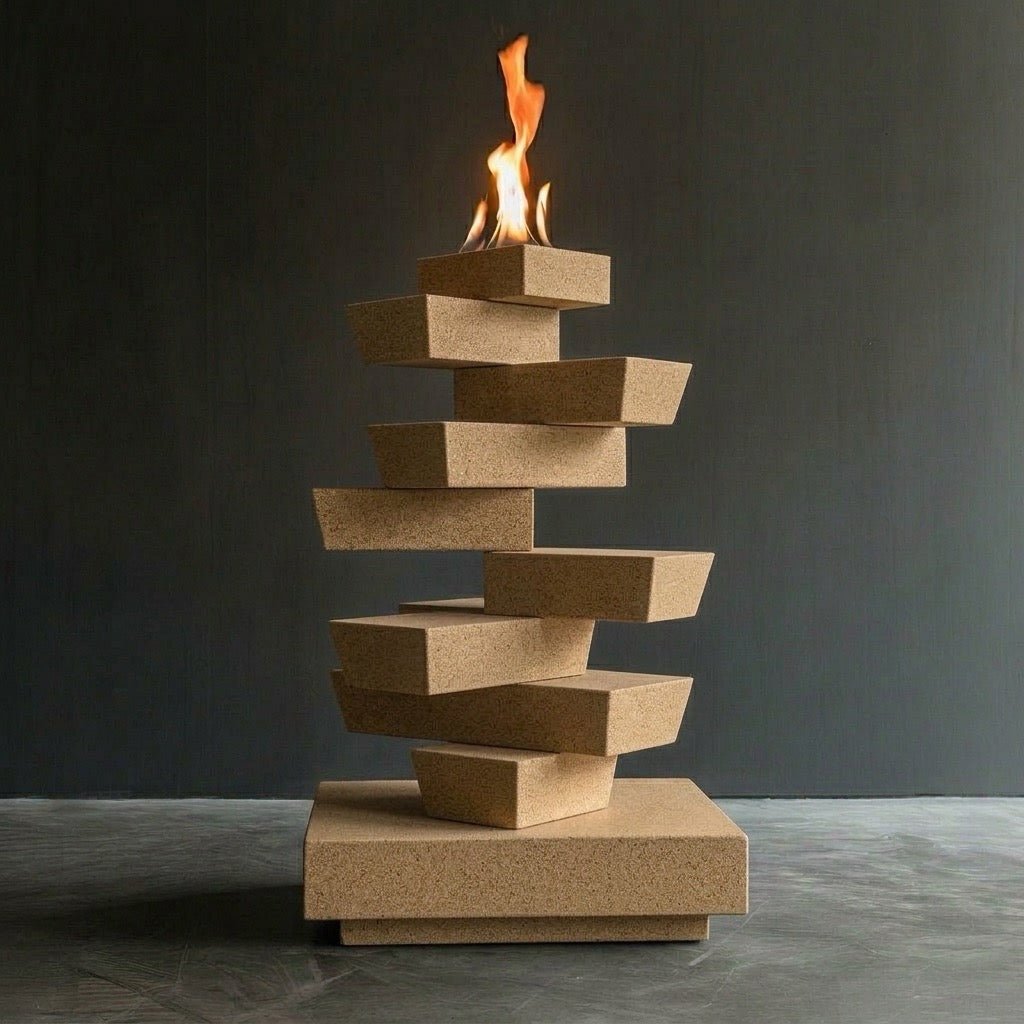

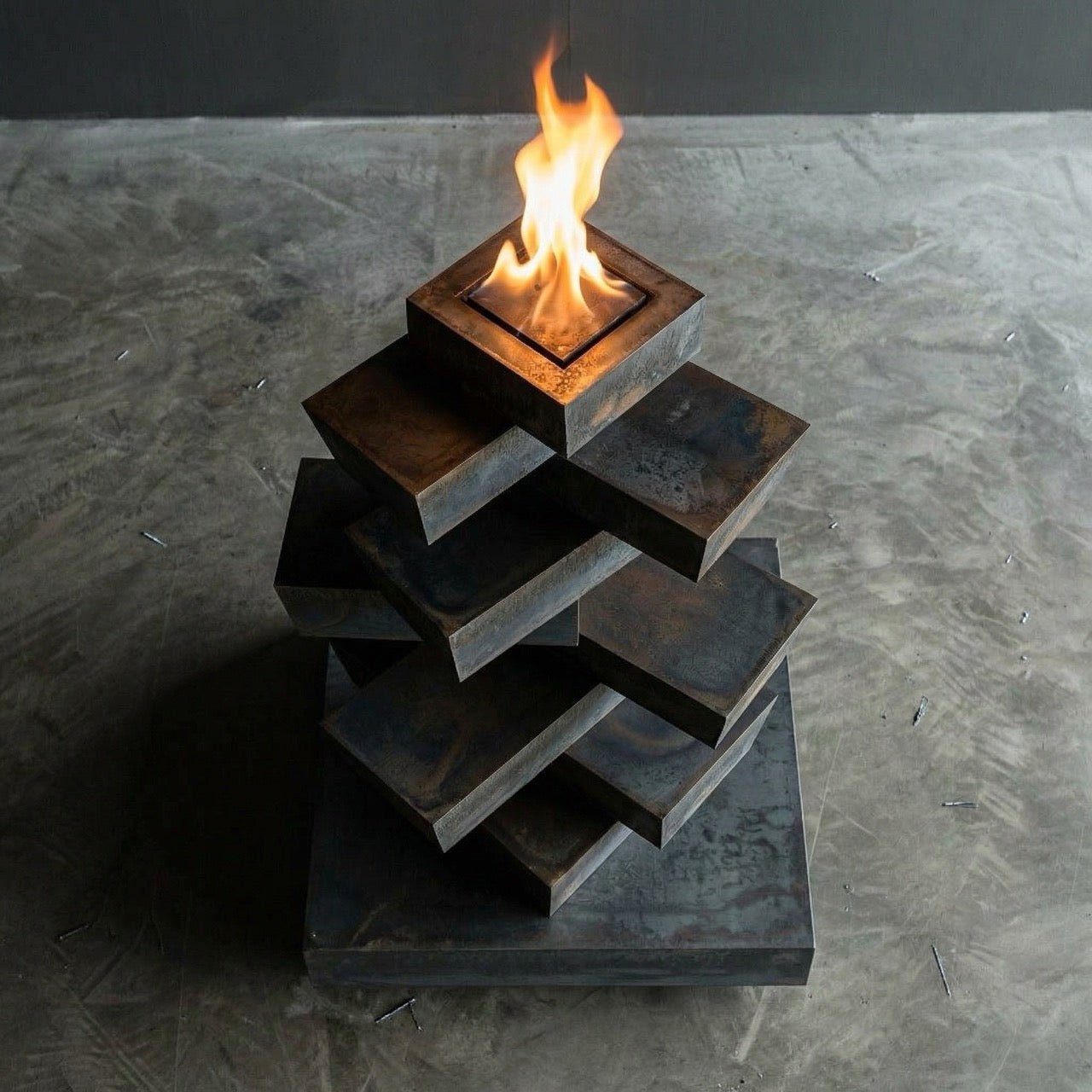

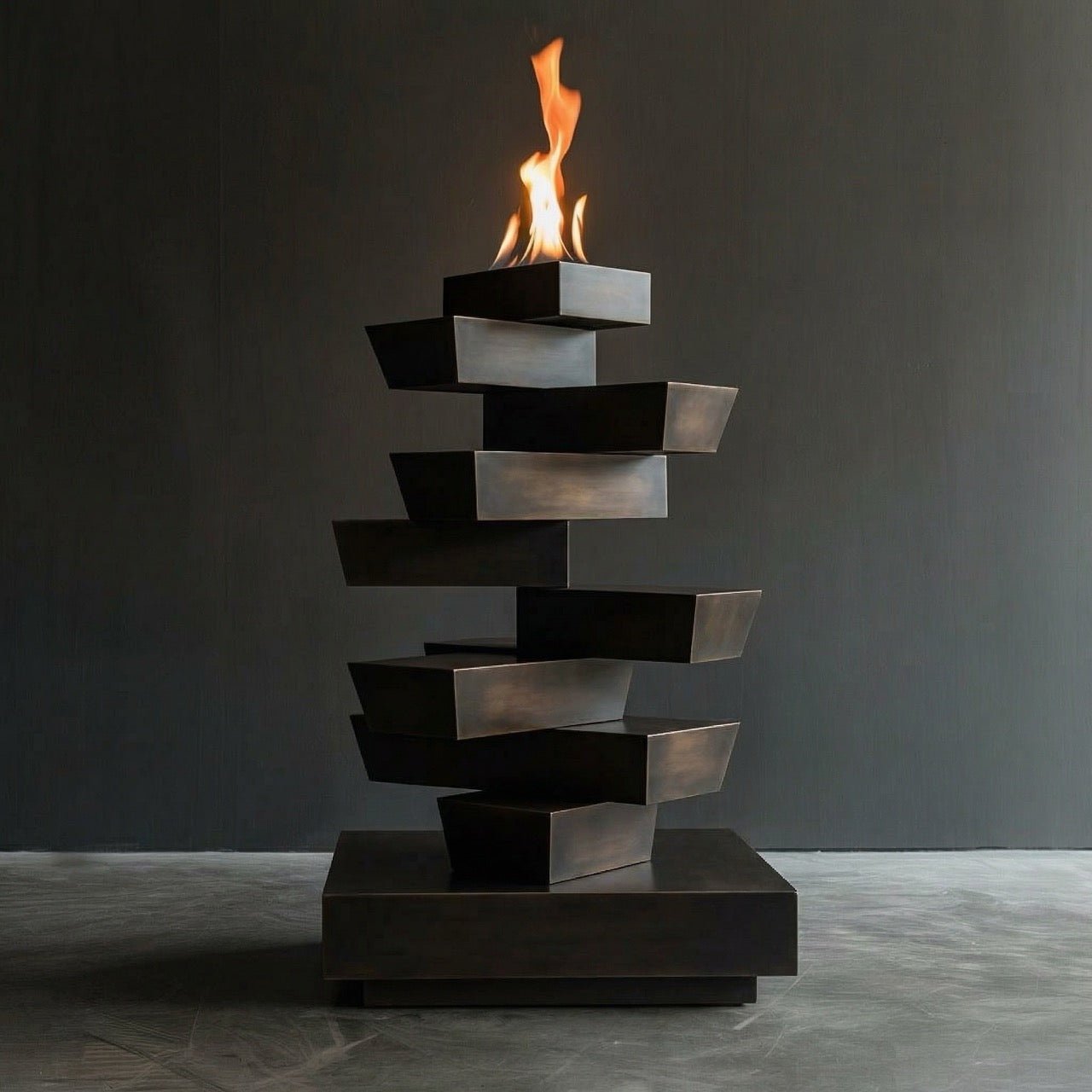

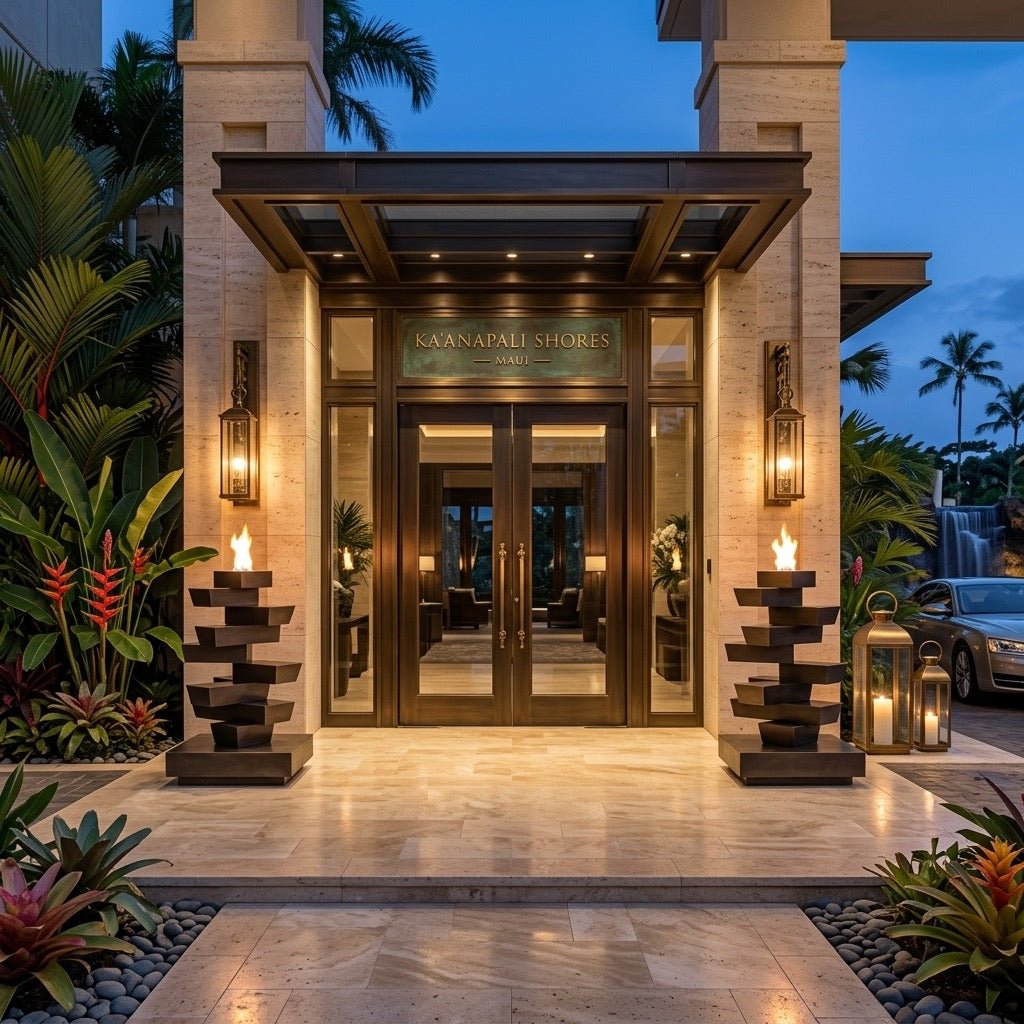

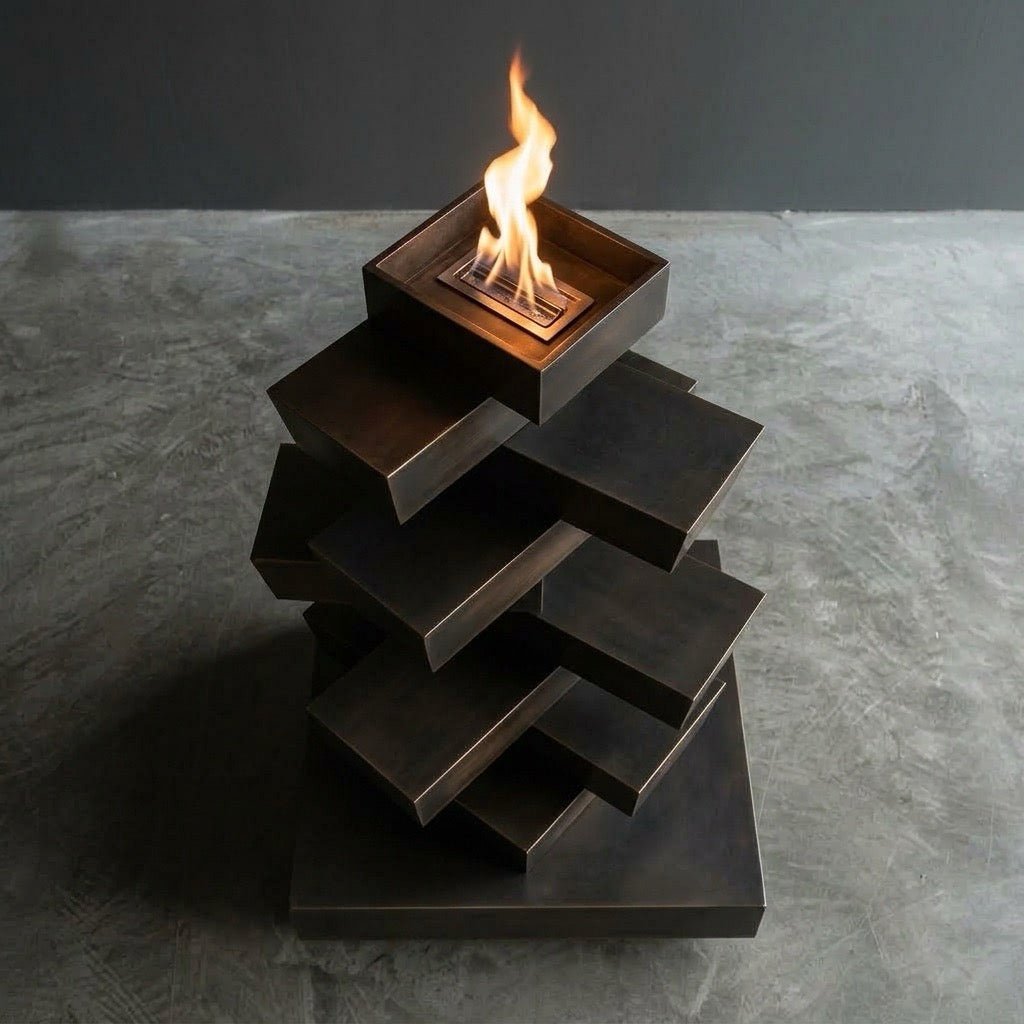

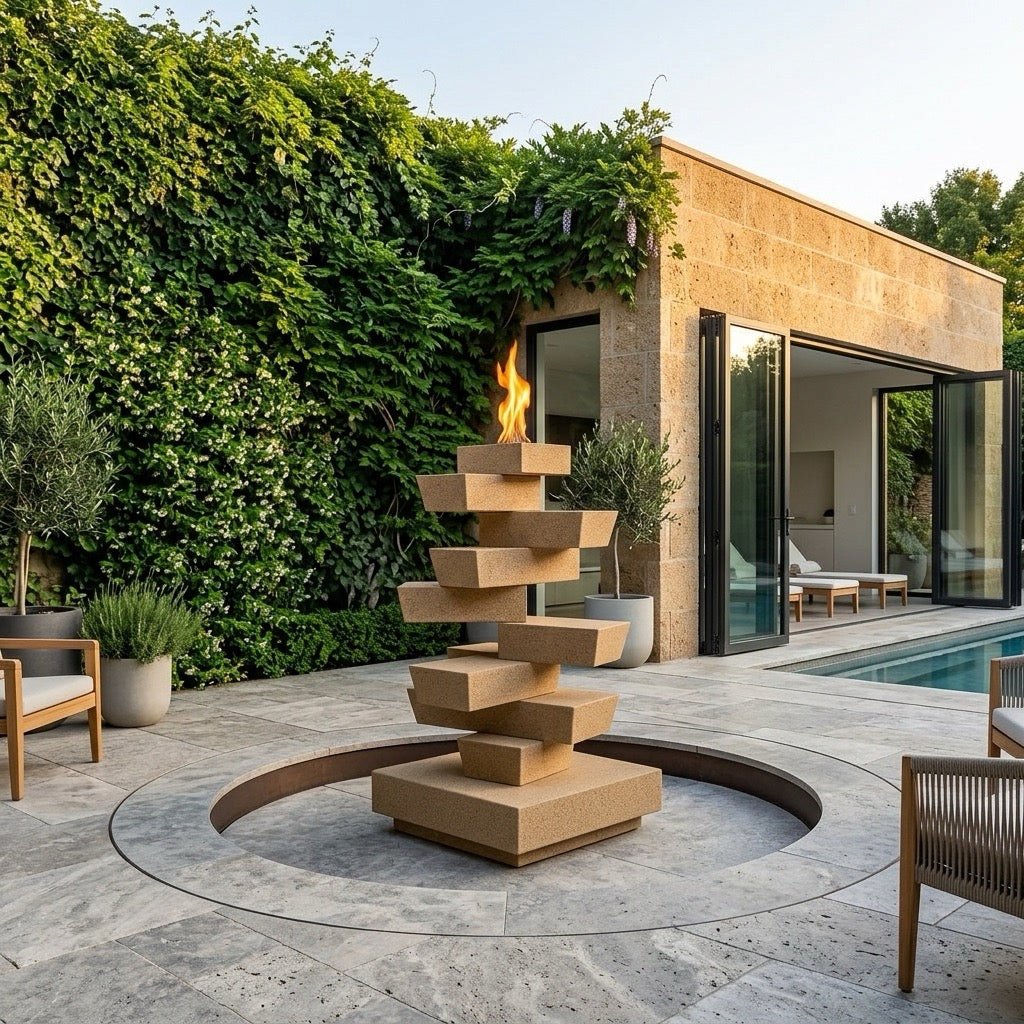

The Traytier Fire Pillar is defined by a vertical stack of offset horizontal tiers that wrap around a central core, creating depth, rhythm, and shadow from every angle. The layered geometry builds outward in a controlled progression, giving the piece a structured yet organic presence. As flame rises through the center, light interacts with each tier, reinforcing the composition and adding dimension throughout the form.
Traytier works as a freestanding sculptural element that introduces height and architectural layering without feeling heavy or enclosed. Its open transitions between tiers allow the flame to remain visible while the structure creates a strong, grounded focal point suited for modern outdoor environments.
Key Features
• Layered tiered design that creates depth, rhythm, and shadow
• Open vertical composition that keeps the flame visible and central
• Balanced proportion for a strong, architectural presence
• Powder coated metal construction using steel or aluminum as required by scale and environment
• High quality burner systems with precision jet technology
• Burner options available in stainless steel or solid brass
• Natural gas or propane compatible
• CSA certified burner systems
• UL compliant ignition options including switch, Bluetooth, or WiFi
• Optional integrated LED lighting with color adjustment
• Concealed internal components for a clean, uninterrupted exterior
• Designed as a freestanding fire sculpture and architectural focal point
• Custom sizes, finishes, materials, and configurations available
You may purchase physical powder coat samples directly on our site for all standard colors. This allows you to review color and texture before finalizing your selection.
You may also explore the full color libraries from our preferred supplier:
Not all available colors are stocked as standard options. Contact us to confirm availability and suitability.
Powder Coating
Modofire finishes use premium exterior powder coating for long-term durability and color stability.
Texture
Fine sand texture with low sheen that reduces glare and helps hide fingerprints and wear.
Metallic
Smooth finish with fine metallic flake that adds subtle reflectivity and depth without high gloss.
Vein Texture
Two-tone finish with natural veining that adds movement while disguising dust and weathering.
Stone Texture
Mineral-textured coating that replicates the look and feel of natural stone.
Artisan Patina
Hand-finished layers applied over powder coat. Each piece has natural variation with a flat-to-satin sheen.
Powder Coating Care
Clean occasionally with mild soap and water using a soft cloth or sponge, then rinse well.
Avoid abrasive pads, steel wool, solvents, bleach, acidic cleaners, and close-range pressure washing.
In coastal or dusty environments, clean more often to remove salt and buildup.
Minor marks are cosmetic, and textured finishes naturally help conceal wear. Patina finishes should be cleaned gently with soap and water only.
What's Included
Every Modofire fire feature includes the components required for installation based on the burner, ignition system, fuel type, and options selected. Components may vary depending on the specific model, customization, and selected upgrades.
Standard Components
- Burner assembly
- Selected ignition system
- Key valve (manual ignition systems)
- Whistle-free flexible gas lines
- Required fittings and hardware
- Mounting brackets and internal support components
Optional Components (When Selected)
- Fire media
- Wind guards
- Burner lid
- Protective cover
- Timer switch
- Emergency stop
- Wireless remote or app controls
- Battery backup or rechargeable battery system
- Additional accessories and upgrades purchased with your fire feature
Shipping
- Some components, accessories, and fire media may be packaged separately within the shipment to help prevent damage during transit.
Important Installation Notice: Modofire fire features are intended for professional installation only. Some assembly is required, including the installation of burner components, gas connections, electrical connections (where applicable), and optional accessories. All installation, gas piping, electrical work, testing, and commissioning must be completed by a qualified licensed professional in accordance with all applicable local building codes, fuel gas codes, and electrical codes.
See Product Description for Burner Sizes and BTU outputs
Features
• Premium jet burner systems
• Brass (stainless steel options also available)
• Natural gas or propane compatible
• CSA certified
• UL compliant ignition options including switch, Bluetooth, or WiFi
• Residential and commercial ready
• Custom sizes and outputs available
Ignition Options
Every Modofire fire feature is available with one of three ignition systems to match your project's needs.
Push Button Spark
Our standard manual ignition. Open the key valve and press the igniter to light the burner.
Best For
-
Simple residential installations
-
No electrical service
-
Lowest cost
Features
-
No power required
-
Manual ignition & flame adjustment
-
Natural Gas or Propane
Match-lit Specification Sheet (HPC)
Match-lit Spark Ignition Specification Sheet (HPC)
FPPK Standing Pilot
A standing pilot with flame sensing automatically shuts off the gas if the pilot goes out.
Best For
-
Added safety
-
Windier locations
-
Residential projects
Features
-
No power required
-
Automatic gas shutoff
-
Natural Gas or Propane
FFPK - Flame Sense Ignition Specification Sheet
AWEIS Electronic
Our premium system automatically ignites, monitors, and relights the burner while supporting advanced controls.
Best For
-
Luxury homes
-
Commercial projects
-
Fire & water features
Features
-
Automatic ignition & relight
-
Automatic gas shutoff
-
Smart home, Bluetooth & WiFi compatible
-
Natural Gas or Propane
AWEIS - Electronic Ignition Specification Sheet (Flame-tec) - Brass or Stainless Burners
AWEIS - Electronic Ignition Specification Sheet (HPC) - Stainless Burners
AWEIS - Electronic Ignition Specification Sheet (Warming Trends) - Brass Burners
Quick Comparison
No power required: Push Button, FPPK
Lowest cost: Push Button
Automatic gas shutoff: FPPK, AWEIS
Automatic relight: AWEIS
Smart home compatible: AWEIS
Commercial use: FPPK, AWEIS
Fire & water features: AWEIS
Fire Media Options
Fire Glass: Contemporary appearance with reflective surfaces that enhance flame visibility and color.
Lava Rock: Traditional volcanic rock offering a natural appearance and excellent heat resistance.
Rolled Lava Stones: Larger hand selected stones that create a more sculptural and organic presentation with greater flame visibility.
Choosing Fire Media
Fire Glass: Best for modern designs and a clean architectural appearance.
Lava Rock: Most economical option with a timeless natural look.
Rolled Lava Stones: Premium upgrade offering a more organic, upscale appearance with less visual density around the flame.
Media Guidelines
Most installations use approximately 2" to 3" of media depth above the burner surface. Larger fire features and linear burners may require additional media depending on burner size, opening dimensions, and desired appearance.
Final media selection and quantity are largely based on personal preference. Please refer to individual media product listings for available colors, sizes, and coverage recommendations.
Available Options: Fire Glass | Lava Rock | Rolled Lava Stones
Lighting
Optional integrated lighting systems are available for all fire, fountain, and spillway inserts. Modofire utilizes Blue Thumb IllumiGlow® and compatible low voltage lighting components to ensure full integration with basin, pump, and spillway systems.
Includes when selected:
• IllumiGlow® color changing LED pond and garden lights
• IllumiGlow® starter packs or single light kits depending on layout
• 12V outdoor rated transformers sized to the lighting load
• Raintight low voltage power supplies
• 2 pin splitters and connection hardware as required
• Optional replacement MR16 color changing bulbs
• Compatible basin lighting integration for Formal Falls® systems
Lighting applications vary by configuration:
Fire Inserts
Lighting is typically integrated through screened openings, perforations, interior pan sidewalls, or bottom illumination to create glow effects beneath or around the flame.
Fountain Inserts
Submersible or basin mounted IllumiGlow® fixtures are positioned within the interior catch basin or reservoir to illuminate moving water and vertical jets.
Spillway Systems
Directional pond and garden lights are positioned to wash the spillway face, basin, or falling sheet of water for full width illumination.
All lighting systems are low voltage and exterior rated for wet environments. Transformers and power supplies are sized per installation. Final electrical connections must be completed by a licensed professional.
Because every Modofire system is custom built, lighting placement, quantity, and transformer sizing vary based on scale, layout, and design intent.
Shipping & Lead Time
Lead Time: Most products are made to order. Lead times vary by product, finish, and burner system and are provided as estimates only. Transit time begins once the order ships.
Shipping Method: Products ship from Modofire or our domestic fabrication partners. Shipping method and cost are based on product size, weight, destination, and delivery requirements.
Delivery Type: Smaller items ship via standard ground carriers. Larger fire pits, fire tables, and custom fabrications ship crated by freight with scheduled curbside liftgate delivery. Placement, uncrating, assembly, and installation are not included.
Inspection: Customers are responsible for ensuring site access and inspecting deliveries upon arrival. Any visible damage must be noted on the carrier's delivery receipt before signing.
Installation Timing: Installation should be scheduled only after shipment confirmation is received.
Important: Modofire is not responsible for delays caused by carriers, weather, permitting, site conditions, or other factors beyond our control.
Warranty & Coverage
Warranty coverage is divided between the fire vessel and the burner and control components.
Fire Vessel and Enclosure
5 year limited warranty covering structural defects in materials and workmanship under normal outdoor use. Surface finishes, patina, and cosmetic changes are not considered structural and are excluded.
Burners and Components
Burners in stainless steel or brass carry a lifetime warranty. Electronics and gas valves are covered for 3 years residential and 1 year commercial. Pilot assemblies are covered for 2 years residential and 1 year commercial. Stainless steel burner pans and valve boxes are covered for 5 years residential and 1 year commercial.
Terms and Exclusions
Warranty begins at shipment and covers replacement parts and factory repair labor only. Installation, removal, freight, and on site labor are excluded. Normal wear, finish variation, heat discoloration, misuse, improper installation, unauthorized modifications, and indirect damages are not covered.
Returns and Cancellations
Most Modofire products are custom made to order and fabricated specifically for each project.
Cancellations
Orders cancelled within 72 hours receive a full refund. Cancellations after 72 hours and before production are subject to a 3 percent fee. Once production or shipping begins, orders cannot be cancelled.
Returns
Custom and made to order products are not eligible for return. This includes fire pits, fire tables, bowls, planters, sculptures, and all fabricated aluminum, steel, or concrete products.
Standard Items
Eligible standard items must be unused, in original packaging, and returned within 30 days of delivery with prior authorization. A 12 percent restocking fee applies and return shipping is the responsibility of the buyer. Refunds are issued after inspection.
Finish Variations
Minor variations in color, texture, or finish are inherent to the fabrication process and are not considered defects.
Exceptions
If Modofire is unable to fulfill an order due to production or material constraints, a full refund will be issued.
Maintenance & Care
Modofire powder coated aluminum fire tables are built for long-term outdoor use and require only routine maintenance.
Clean Surfaces
Wash with mild soap and water using a soft cloth. Avoid abrasive cleaners, solvents, bleach, and pressure washing. In coastal or poolside environments, clean more frequently to preserve the finish.
Burner Care
Keep burner ports free of leaves, insects, debris, and fire media dust. Clean gently with a soft brush or compressed air. Do not modify the burner. Install fire media loosely and evenly for proper flame performance.
Ignition Systems
Periodically inspect gas connections, wiring, controls, and ignition components. Keep electronic systems dry and allow them to dry completely if exposed to moisture. Test operation regularly and follow the ignition manufacturer's maintenance recommendations.
Covers & Lids
Always allow the fire table to cool before installing a lid or cover. Keeping the unit covered when not in use helps protect the finish and extends the life of the burner and ignition system.
Seasonal Inspection
Before each season and after extended storage, inspect the burner, gas connections, and ignition system. Replace worn components as needed and consult a qualified professional for service.
With routine cleaning and periodic inspections, your Modofire fire table will provide years of dependable performance and lasting beauty.
Gas & Electrical Requirements
To help ensure proper performance, your fire feature will require an adequate gas supply and, depending on the ignition option selected, may require electrical power.
Gas Supply Requirements
Available for Natural Gas (NG) or Liquid Propane (LP). Most installations connect to an existing gas line or an external propane tank.
Most residential fire features operate between 90k and 300k BTU. Larger fire tables and commercial installations may require 300k BTU to 600k+ BTU.
As burner size increases, larger gas lines and sufficient gas supply become increasingly important.
Reference Charts: Natural Gas Sizing Chart
Natural Gas Pipe Sizing Guide (Approximate Maximum BTU Capacity)
- 1/2" Pipe • 20 ft: 118k BTU • 50 ft: 72k BTU • 100 ft: 50k BTU
- 3/4" Pipe • 20 ft: 247k BTU • 50 ft: 151k BTU • 100 ft: 104k BTU
- 1" Pipe • 20 ft: 466k BTU • 50 ft: 284k BTU • 100 ft: 195k BTU
- 1¼" Pipe • 20 ft: 957k BTU • 50 ft: 583k BTU • 100 ft: 400k BTU
Liquid Propane Pipe Sizing Guide (Approximate Maximum BTU Capacity)
- 1/2" Pipe • 20 ft: 200k BTU • 50 ft: 122k BTU • 100 ft: 94k BTU
- 3/4" Pipe • 20 ft: 418k BTU • 50 ft: 255k BTU • 100 ft: 197k BTU
- 1" Pipe • 20 ft: 787k BTU • 50 ft: 480k BTU • 100 ft: 372k BTU
- 1¼" Pipe • 20 ft: 1,620k BTU • 50 ft: 985k BTU • 100 ft: 763k BTU
Typical Examples
- • 150k BTU fire feature: Often served by a 3/4" gas line
- • 300k BTU fire feature: Often served by a 1" gas line
- • 500k BTU fire feature: Often served by a 1¼" gas line
Actual requirements vary based on pipe length, fittings, regulators, gas meter capacity, elevation, and other connected appliances. Pipe length should also account for fittings, with the manufacturer reference chart noting approximately 5 ft of added length per fitting.
Ignition & Electrical Requirements
The following ignition and control options are available depending on your desired features and available power source.
Push Button Spark Ignition: No electrical service required.
All Weather Electronic Ignition: Requires a nearby 120VAC power source.
Bluetooth & WiFi Control Module: Optional add on for compatible electronic ignition systems. Utilizes the same 120VAC power source as the ignition system.
Rechargeable Battery Bluetooth & WiFi Module: Optional all in one battery powered ignition and control system for installations where line voltage is unavailable or difficult to access.
Available Controls
Wall Switches • Timer Switches • Emergency Stops • Bluetooth • WiFi • Hi/Lo Flame Control • Smart Home Integration • Building Automation Systems
Professional Installation
Final gas and electrical connections must be completed by qualified licensed professionals in accordance with local codes and regulations.
Gas sizing charts and BTU references are provided as general guidelines only. Actual gas availability varies by installation. Always consult a licensed gas professional to verify gas capacity, pipe sizing, pressure, regulator sizing, meter capacity, and code compliance before installation.
Traytier Fire Pillar Sculpture
- Unit price
- / per
Production Time: 12-14 weeks
Shipping Time: 3–5 business days
For the most accurate shipping timelines, please contact us prior to ordering.
Contact us for estimates, customizations, 3D models, renderings, and more. All products are custom made-to-order.
Adding product to your cart
Traytier Fire Pillar – Custom
The Traytier Fire Pillar is defined by a vertical stack of offset horizontal tiers that wrap around a central core, creating depth, rhythm, and shadow from every angle. The layered geometry builds outward in a controlled progression, giving the piece a structured yet organic presence. As flame rises through the center, light interacts with each tier, reinforcing the composition and adding dimension throughout the form.
Traytier works as a freestanding sculptural element that introduces height and architectural layering without feeling heavy or enclosed. Its open transitions between tiers allow the flame to remain visible while the structure creates a strong, grounded focal point suited for modern outdoor environments.
Key Features
• Layered tiered design that creates depth, rhythm, and shadow
• Open vertical composition that keeps the flame visible and central
• Balanced proportion for a strong, architectural presence
• Powder coated metal construction using steel or aluminum as required by scale and environment
• High quality burner systems with precision jet technology
• Burner options available in stainless steel or solid brass
• Natural gas or propane compatible
• CSA certified burner systems
• UL compliant ignition options including switch, Bluetooth, or WiFi
• Optional integrated LED lighting with color adjustment
• Concealed internal components for a clean, uninterrupted exterior
• Designed as a freestanding fire sculpture and architectural focal point
• Custom sizes, finishes, materials, and configurations available
You may purchase physical powder coat samples directly on our site for all standard colors. This allows you to review color and texture before finalizing your selection.
You may also explore the full color libraries from our preferred supplier:
Not all available colors are stocked as standard options. Contact us to confirm availability and suitability.
Powder Coating
Modofire finishes use premium exterior powder coating for long-term durability and color stability.
Texture
Fine sand texture with low sheen that reduces glare and helps hide fingerprints and wear.
Metallic
Smooth finish with fine metallic flake that adds subtle reflectivity and depth without high gloss.
Vein Texture
Two-tone finish with natural veining that adds movement while disguising dust and weathering.
Stone Texture
Mineral-textured coating that replicates the look and feel of natural stone.
Artisan Patina
Hand-finished layers applied over powder coat. Each piece has natural variation with a flat-to-satin sheen.
Powder Coating Care
Clean occasionally with mild soap and water using a soft cloth or sponge, then rinse well.
Avoid abrasive pads, steel wool, solvents, bleach, acidic cleaners, and close-range pressure washing.
In coastal or dusty environments, clean more often to remove salt and buildup.
Minor marks are cosmetic, and textured finishes naturally help conceal wear. Patina finishes should be cleaned gently with soap and water only.
What's Included
Every Modofire fire feature includes the components required for installation based on the burner, ignition system, fuel type, and options selected. Components may vary depending on the specific model, customization, and selected upgrades.
Standard Components
- Burner assembly
- Selected ignition system
- Key valve (manual ignition systems)
- Whistle-free flexible gas lines
- Required fittings and hardware
- Mounting brackets and internal support components
Optional Components (When Selected)
- Fire media
- Wind guards
- Burner lid
- Protective cover
- Timer switch
- Emergency stop
- Wireless remote or app controls
- Battery backup or rechargeable battery system
- Additional accessories and upgrades purchased with your fire feature
Shipping
- Some components, accessories, and fire media may be packaged separately within the shipment to help prevent damage during transit.
Important Installation Notice: Modofire fire features are intended for professional installation only. Some assembly is required, including the installation of burner components, gas connections, electrical connections (where applicable), and optional accessories. All installation, gas piping, electrical work, testing, and commissioning must be completed by a qualified licensed professional in accordance with all applicable local building codes, fuel gas codes, and electrical codes.
See Product Description for Burner Sizes and BTU outputs
Features
• Premium jet burner systems
• Brass (stainless steel options also available)
• Natural gas or propane compatible
• CSA certified
• UL compliant ignition options including switch, Bluetooth, or WiFi
• Residential and commercial ready
• Custom sizes and outputs available
Ignition Options
Every Modofire fire feature is available with one of three ignition systems to match your project's needs.
Push Button Spark
Our standard manual ignition. Open the key valve and press the igniter to light the burner.
Best For
-
Simple residential installations
-
No electrical service
-
Lowest cost
Features
-
No power required
-
Manual ignition & flame adjustment
-
Natural Gas or Propane
Match-lit Specification Sheet (HPC)
Match-lit Spark Ignition Specification Sheet (HPC)
FPPK Standing Pilot
A standing pilot with flame sensing automatically shuts off the gas if the pilot goes out.
Best For
-
Added safety
-
Windier locations
-
Residential projects
Features
-
No power required
-
Automatic gas shutoff
-
Natural Gas or Propane
FFPK - Flame Sense Ignition Specification Sheet
AWEIS Electronic
Our premium system automatically ignites, monitors, and relights the burner while supporting advanced controls.
Best For
-
Luxury homes
-
Commercial projects
-
Fire & water features
Features
-
Automatic ignition & relight
-
Automatic gas shutoff
-
Smart home, Bluetooth & WiFi compatible
-
Natural Gas or Propane
AWEIS - Electronic Ignition Specification Sheet (Flame-tec) - Brass or Stainless Burners
AWEIS - Electronic Ignition Specification Sheet (HPC) - Stainless Burners
AWEIS - Electronic Ignition Specification Sheet (Warming Trends) - Brass Burners
Quick Comparison
No power required: Push Button, FPPK
Lowest cost: Push Button
Automatic gas shutoff: FPPK, AWEIS
Automatic relight: AWEIS
Smart home compatible: AWEIS
Commercial use: FPPK, AWEIS
Fire & water features: AWEIS
Fire Media Options
Fire Glass: Contemporary appearance with reflective surfaces that enhance flame visibility and color.
Lava Rock: Traditional volcanic rock offering a natural appearance and excellent heat resistance.
Rolled Lava Stones: Larger hand selected stones that create a more sculptural and organic presentation with greater flame visibility.
Choosing Fire Media
Fire Glass: Best for modern designs and a clean architectural appearance.
Lava Rock: Most economical option with a timeless natural look.
Rolled Lava Stones: Premium upgrade offering a more organic, upscale appearance with less visual density around the flame.
Media Guidelines
Most installations use approximately 2" to 3" of media depth above the burner surface. Larger fire features and linear burners may require additional media depending on burner size, opening dimensions, and desired appearance.
Final media selection and quantity are largely based on personal preference. Please refer to individual media product listings for available colors, sizes, and coverage recommendations.
Available Options: Fire Glass | Lava Rock | Rolled Lava Stones
Lighting
Optional integrated lighting systems are available for all fire, fountain, and spillway inserts. Modofire utilizes Blue Thumb IllumiGlow® and compatible low voltage lighting components to ensure full integration with basin, pump, and spillway systems.
Includes when selected:
• IllumiGlow® color changing LED pond and garden lights
• IllumiGlow® starter packs or single light kits depending on layout
• 12V outdoor rated transformers sized to the lighting load
• Raintight low voltage power supplies
• 2 pin splitters and connection hardware as required
• Optional replacement MR16 color changing bulbs
• Compatible basin lighting integration for Formal Falls® systems
Lighting applications vary by configuration:
Fire Inserts
Lighting is typically integrated through screened openings, perforations, interior pan sidewalls, or bottom illumination to create glow effects beneath or around the flame.
Fountain Inserts
Submersible or basin mounted IllumiGlow® fixtures are positioned within the interior catch basin or reservoir to illuminate moving water and vertical jets.
Spillway Systems
Directional pond and garden lights are positioned to wash the spillway face, basin, or falling sheet of water for full width illumination.
All lighting systems are low voltage and exterior rated for wet environments. Transformers and power supplies are sized per installation. Final electrical connections must be completed by a licensed professional.
Because every Modofire system is custom built, lighting placement, quantity, and transformer sizing vary based on scale, layout, and design intent.
Shipping & Lead Time
Lead Time: Most products are made to order. Lead times vary by product, finish, and burner system and are provided as estimates only. Transit time begins once the order ships.
Shipping Method: Products ship from Modofire or our domestic fabrication partners. Shipping method and cost are based on product size, weight, destination, and delivery requirements.
Delivery Type: Smaller items ship via standard ground carriers. Larger fire pits, fire tables, and custom fabrications ship crated by freight with scheduled curbside liftgate delivery. Placement, uncrating, assembly, and installation are not included.
Inspection: Customers are responsible for ensuring site access and inspecting deliveries upon arrival. Any visible damage must be noted on the carrier's delivery receipt before signing.
Installation Timing: Installation should be scheduled only after shipment confirmation is received.
Important: Modofire is not responsible for delays caused by carriers, weather, permitting, site conditions, or other factors beyond our control.
Warranty & Coverage
Warranty coverage is divided between the fire vessel and the burner and control components.
Fire Vessel and Enclosure
5 year limited warranty covering structural defects in materials and workmanship under normal outdoor use. Surface finishes, patina, and cosmetic changes are not considered structural and are excluded.
Burners and Components
Burners in stainless steel or brass carry a lifetime warranty. Electronics and gas valves are covered for 3 years residential and 1 year commercial. Pilot assemblies are covered for 2 years residential and 1 year commercial. Stainless steel burner pans and valve boxes are covered for 5 years residential and 1 year commercial.
Terms and Exclusions
Warranty begins at shipment and covers replacement parts and factory repair labor only. Installation, removal, freight, and on site labor are excluded. Normal wear, finish variation, heat discoloration, misuse, improper installation, unauthorized modifications, and indirect damages are not covered.
Returns and Cancellations
Most Modofire products are custom made to order and fabricated specifically for each project.
Cancellations
Orders cancelled within 72 hours receive a full refund. Cancellations after 72 hours and before production are subject to a 3 percent fee. Once production or shipping begins, orders cannot be cancelled.
Returns
Custom and made to order products are not eligible for return. This includes fire pits, fire tables, bowls, planters, sculptures, and all fabricated aluminum, steel, or concrete products.
Standard Items
Eligible standard items must be unused, in original packaging, and returned within 30 days of delivery with prior authorization. A 12 percent restocking fee applies and return shipping is the responsibility of the buyer. Refunds are issued after inspection.
Finish Variations
Minor variations in color, texture, or finish are inherent to the fabrication process and are not considered defects.
Exceptions
If Modofire is unable to fulfill an order due to production or material constraints, a full refund will be issued.
Maintenance & Care
Modofire powder coated aluminum fire tables are built for long-term outdoor use and require only routine maintenance.
Clean Surfaces
Wash with mild soap and water using a soft cloth. Avoid abrasive cleaners, solvents, bleach, and pressure washing. In coastal or poolside environments, clean more frequently to preserve the finish.
Burner Care
Keep burner ports free of leaves, insects, debris, and fire media dust. Clean gently with a soft brush or compressed air. Do not modify the burner. Install fire media loosely and evenly for proper flame performance.
Ignition Systems
Periodically inspect gas connections, wiring, controls, and ignition components. Keep electronic systems dry and allow them to dry completely if exposed to moisture. Test operation regularly and follow the ignition manufacturer's maintenance recommendations.
Covers & Lids
Always allow the fire table to cool before installing a lid or cover. Keeping the unit covered when not in use helps protect the finish and extends the life of the burner and ignition system.
Seasonal Inspection
Before each season and after extended storage, inspect the burner, gas connections, and ignition system. Replace worn components as needed and consult a qualified professional for service.
With routine cleaning and periodic inspections, your Modofire fire table will provide years of dependable performance and lasting beauty.
Gas & Electrical Requirements
To help ensure proper performance, your fire feature will require an adequate gas supply and, depending on the ignition option selected, may require electrical power.
Gas Supply Requirements
Available for Natural Gas (NG) or Liquid Propane (LP). Most installations connect to an existing gas line or an external propane tank.
Most residential fire features operate between 90k and 300k BTU. Larger fire tables and commercial installations may require 300k BTU to 600k+ BTU.
As burner size increases, larger gas lines and sufficient gas supply become increasingly important.
Reference Charts: Natural Gas Sizing Chart
Natural Gas Pipe Sizing Guide (Approximate Maximum BTU Capacity)
- 1/2" Pipe • 20 ft: 118k BTU • 50 ft: 72k BTU • 100 ft: 50k BTU
- 3/4" Pipe • 20 ft: 247k BTU • 50 ft: 151k BTU • 100 ft: 104k BTU
- 1" Pipe • 20 ft: 466k BTU • 50 ft: 284k BTU • 100 ft: 195k BTU
- 1¼" Pipe • 20 ft: 957k BTU • 50 ft: 583k BTU • 100 ft: 400k BTU
Liquid Propane Pipe Sizing Guide (Approximate Maximum BTU Capacity)
- 1/2" Pipe • 20 ft: 200k BTU • 50 ft: 122k BTU • 100 ft: 94k BTU
- 3/4" Pipe • 20 ft: 418k BTU • 50 ft: 255k BTU • 100 ft: 197k BTU
- 1" Pipe • 20 ft: 787k BTU • 50 ft: 480k BTU • 100 ft: 372k BTU
- 1¼" Pipe • 20 ft: 1,620k BTU • 50 ft: 985k BTU • 100 ft: 763k BTU
Typical Examples
- • 150k BTU fire feature: Often served by a 3/4" gas line
- • 300k BTU fire feature: Often served by a 1" gas line
- • 500k BTU fire feature: Often served by a 1¼" gas line
Actual requirements vary based on pipe length, fittings, regulators, gas meter capacity, elevation, and other connected appliances. Pipe length should also account for fittings, with the manufacturer reference chart noting approximately 5 ft of added length per fitting.
Ignition & Electrical Requirements
The following ignition and control options are available depending on your desired features and available power source.
Push Button Spark Ignition: No electrical service required.
All Weather Electronic Ignition: Requires a nearby 120VAC power source.
Bluetooth & WiFi Control Module: Optional add on for compatible electronic ignition systems. Utilizes the same 120VAC power source as the ignition system.
Rechargeable Battery Bluetooth & WiFi Module: Optional all in one battery powered ignition and control system for installations where line voltage is unavailable or difficult to access.
Available Controls
Wall Switches • Timer Switches • Emergency Stops • Bluetooth • WiFi • Hi/Lo Flame Control • Smart Home Integration • Building Automation Systems
Professional Installation
Final gas and electrical connections must be completed by qualified licensed professionals in accordance with local codes and regulations.
Gas sizing charts and BTU references are provided as general guidelines only. Actual gas availability varies by installation. Always consult a licensed gas professional to verify gas capacity, pipe sizing, pressure, regulator sizing, meter capacity, and code compliance before installation.
