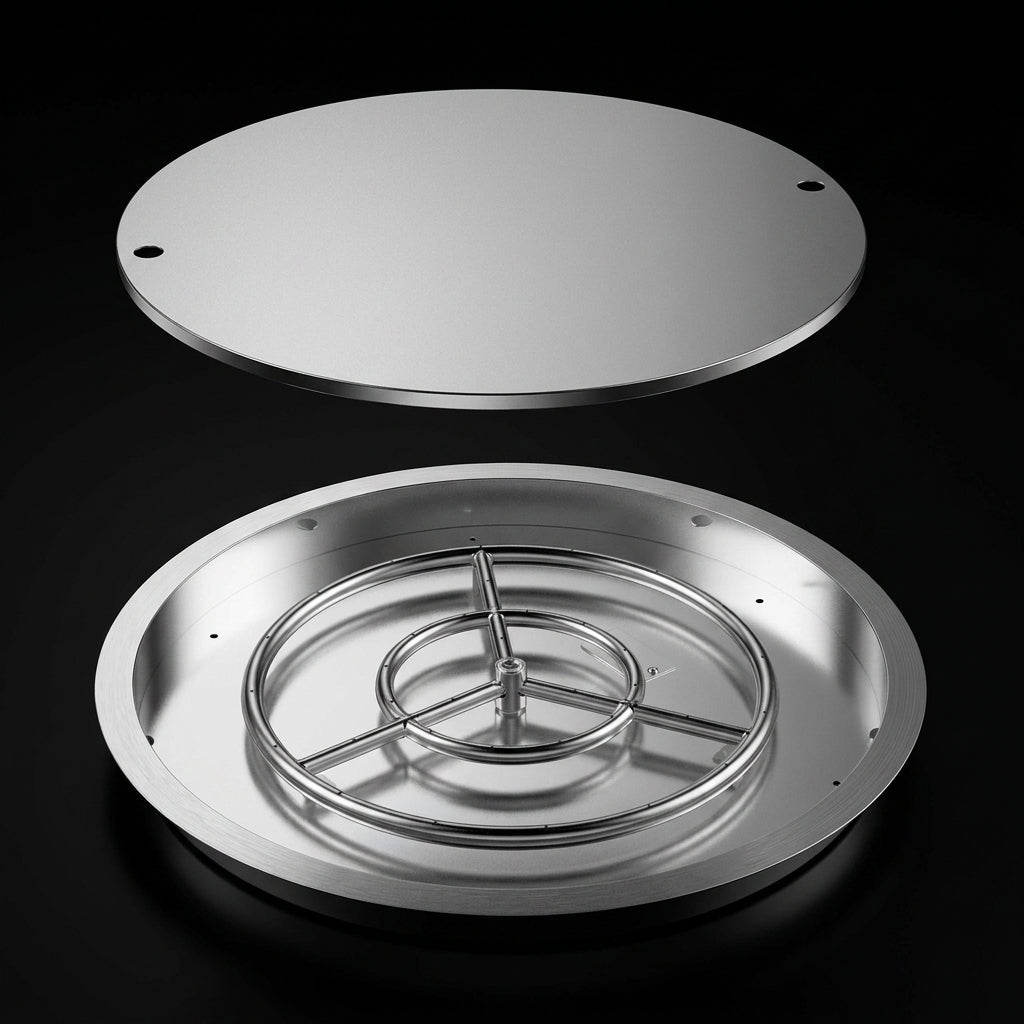

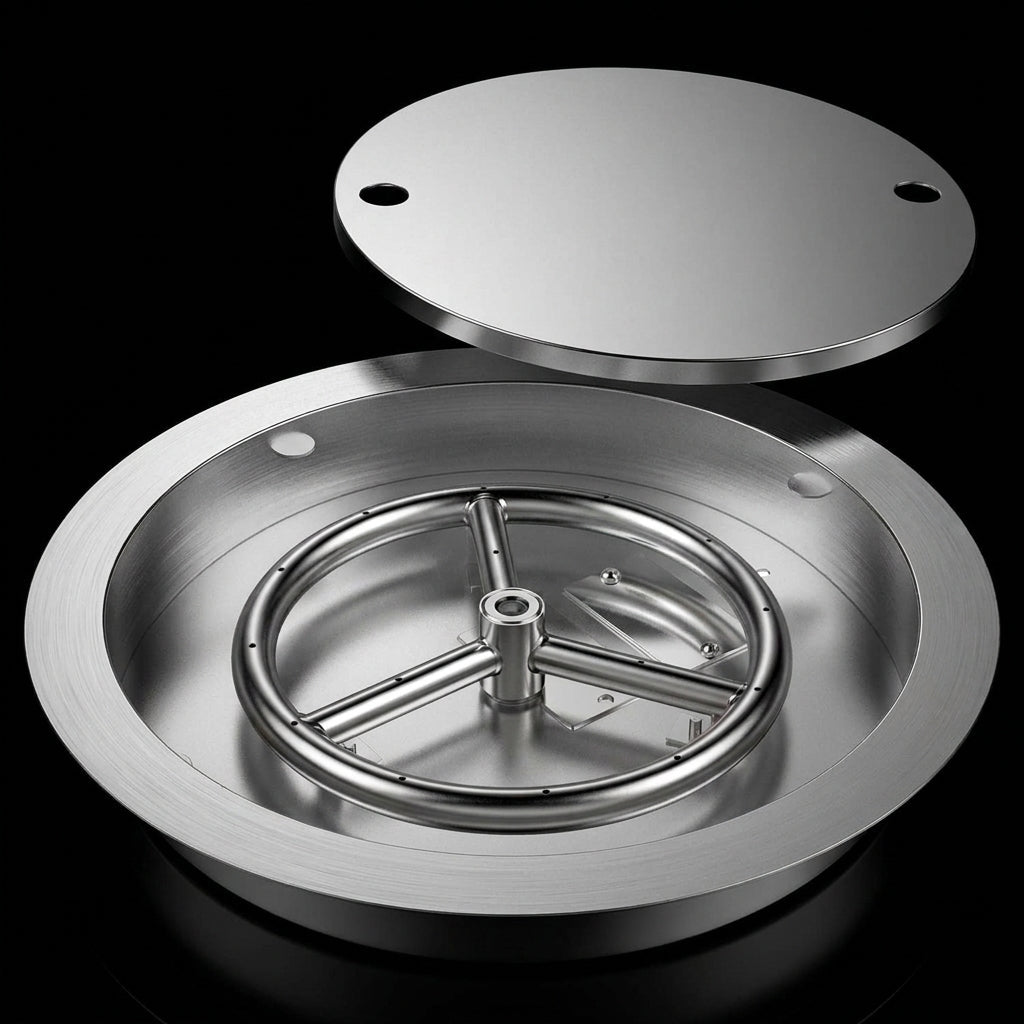

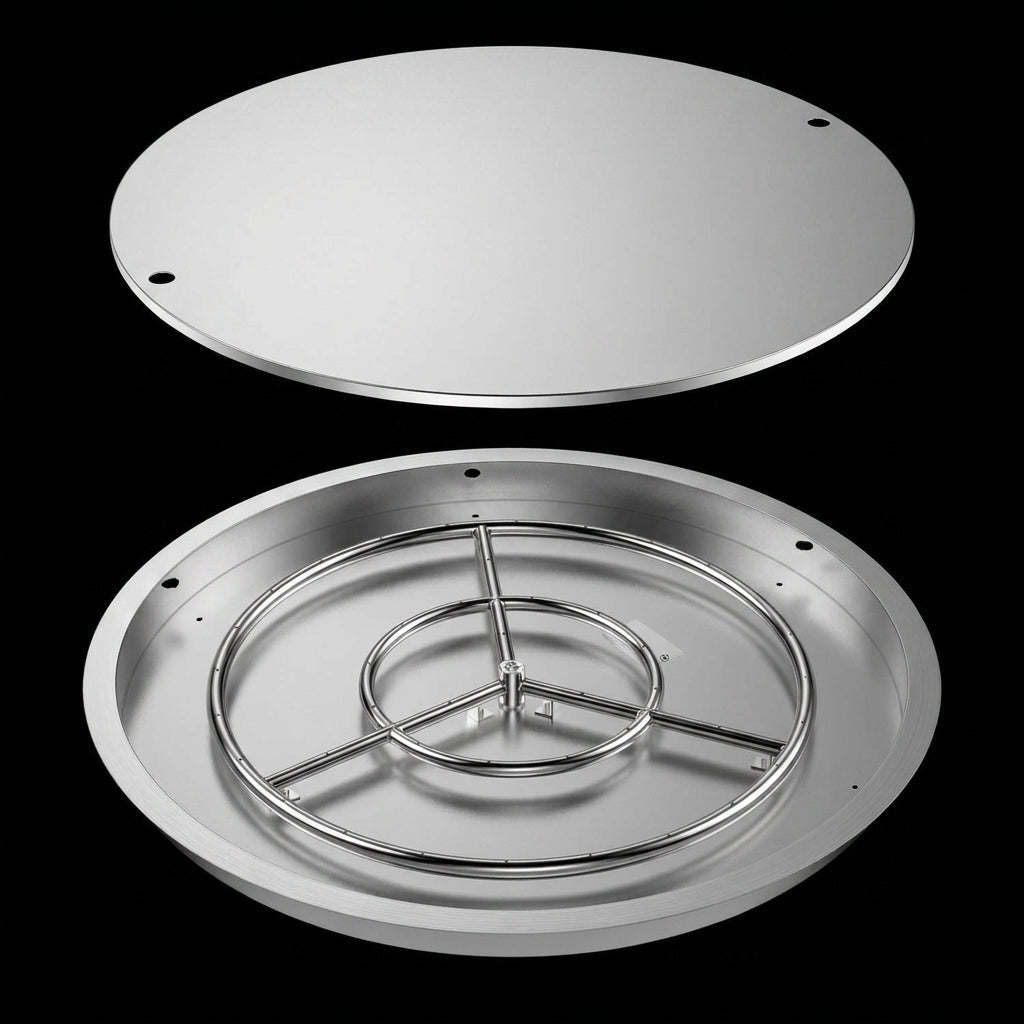

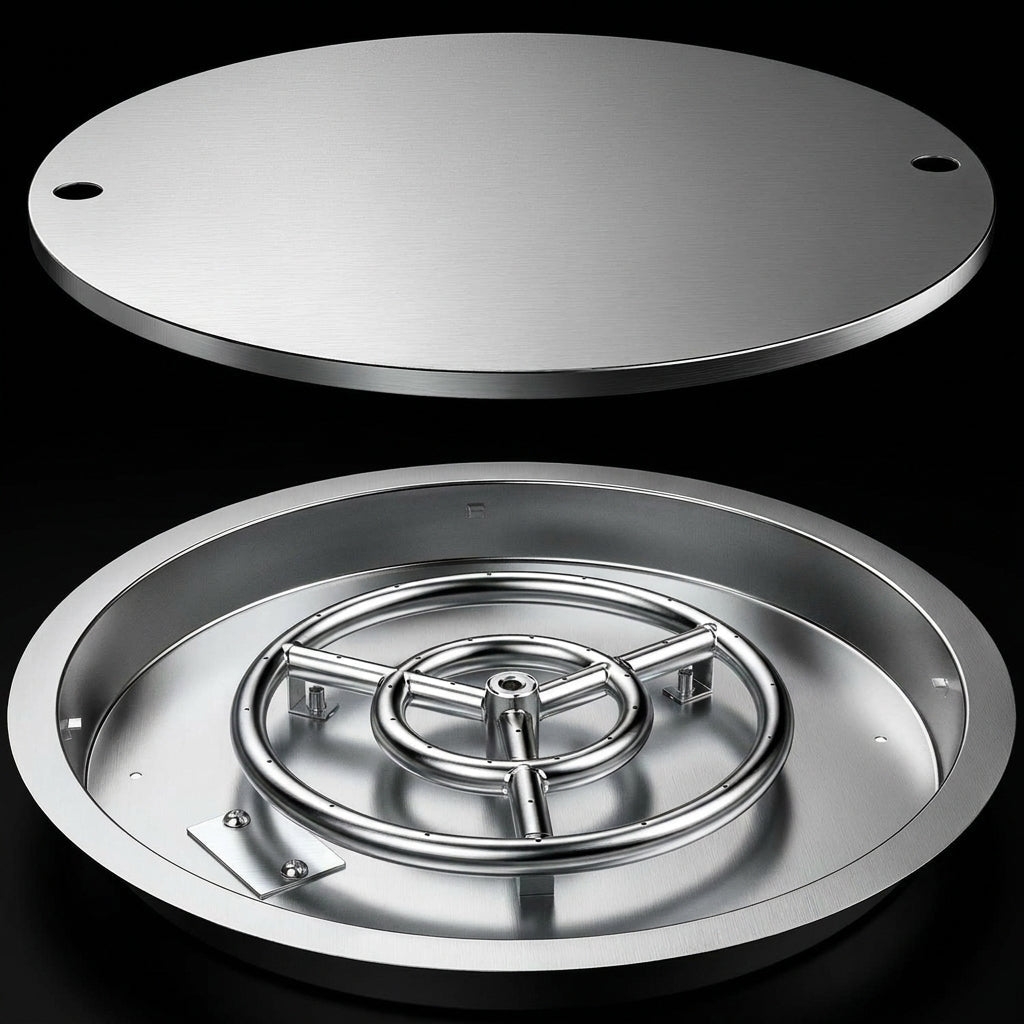

Round Stainless Steel Fire Pit Pan with Burner
A complete drop-in fire pit solution designed for clean installation and consistent flame performance. Each unit includes a precision-fit stainless steel pan, matched ring burner, and protective cover, all built from #304 stainless steel for long-term durability outdoors. The integrated flange provides a clean finished edge, while built-in weep holes prevent water buildup. Designed for both natural gas and propane applications, with simple connections and optional ignition compatibility.
Key Features
• #304 stainless steel construction for corrosion and heat resistance
• Drop-in pan with 1 1/4" top flange for a clean install
• Center gas inlet with standard 1/2" connection
• Built-in drainage holes to prevent water accumulation
• Includes protective burner cover to extend lifespan
• Compatible with natural gas or propane (air mixer required for LP)
• Optional igniter mounting plate included
Available Sizes, Burners, and BTU Output
• 13" Pan • 9" Burner • Up to 88,000 BTU
• 19" Pan • 12" Double Ring Burner • Up to 92,000 BTU
• 25" Pan • 18" Burner • Up to 147,000 BTU
• 31" Pan • 24" Burner • Up to 296,000 BTU
Media Recommendations
• 13" Pan • ~15 lbs fire glass
• 19" Pan • ~30 lbs fire glass
• 25" Pan • ~50 lbs fire glass
• 31" Pan • ~100 lbs fire glass
A straightforward, durable burner system that delivers reliable flame performance with minimal installation effort.
Push Button Spark Ignition
Standard on all Modofire fire tables, pits, and sculptures. This manual system uses a push button spark or match to ignite the burner. Flame height is controlled by the key valve.
Low Voltage Electric Ignition with Safety Shutoff
An optional fully automatic ignition system designed for reliable operation in outdoor environments, including near pools or water features. The system relights automatically and shuts off gas if the flame is lost. Ignition can be controlled by a wall switch, remote, Bluetooth, or WiFi, depending on configuration.
